BAL-2690D3U

BAL-2690D3U Overview

Product belongs to the BAL-2690D3U series. This product is categorized as Baluns Type: Balun Transformer Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' Solder ' for easy integration into your design. Wide - 40 C to + 85 C operating temperature range for diverse applications FlipChip-4 This product's 2.441 GHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.402GHz ~ 2.48GHz 2441 MHz bandwidth 50 / - Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 10° 1. Maximum Insertion Loss of 1.1dB; The specified Return-Loss-Min is 14dB.

BAL-2690D3U Image

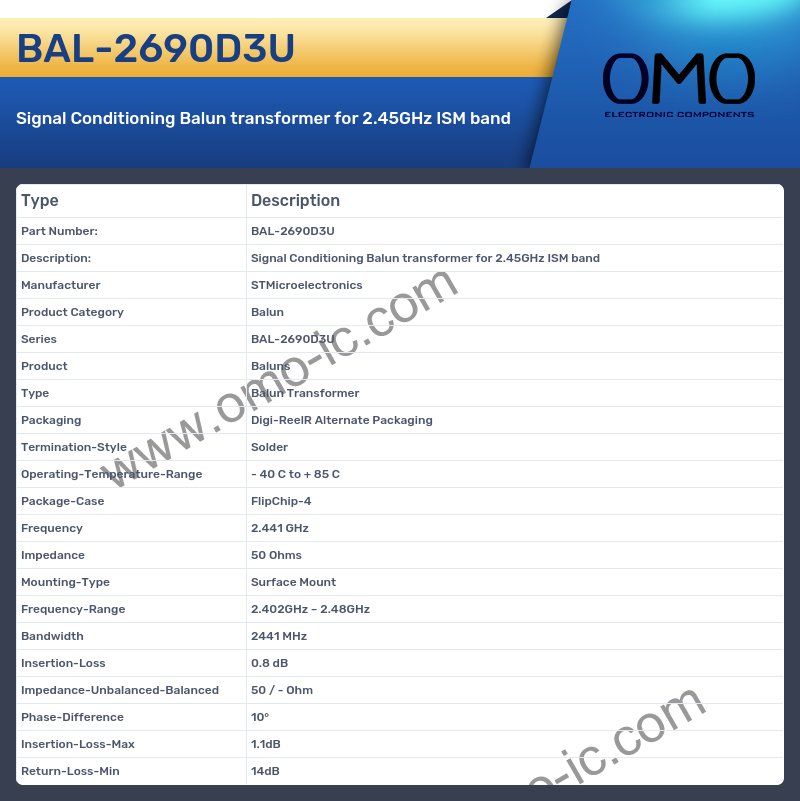

BAL-2690D3U Specifications

• Manufacturer STMicroelectronics
• Product Category Balun
• Series BAL-2690D3U
• Product Baluns
• Type Balun Transformer
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style Solder
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case FlipChip-4
• Frequency 2.441 GHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.402GHz ~ 2.48GHz
• Bandwidth 2441 MHz
• Insertion-Loss 0.8 dB
• Impedance-Unbalanced-Balanced 50 / - Ohm
• Phase-Difference 10°
• Insertion-Loss-Max 1.1dB
• Return-Loss-Min 14dB
