BAL-CC25-01D3

BAL-CC25-01D3 Overview

Product belongs to the BAL-CC25-01D3 series. This product is categorized as Baluns Type: Balun Transformer Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' Solder ' for easy integration into your design. Wide - 40 C to + 125 C operating temperature range for diverse applications FlipChip-4 This product's 2.45 GHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.379GHz ~ 2.507GHz 2.45 GHz bandwidth 50 / - Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 14° 1. Maximum Insertion Loss of 0.66dB; The specified Return-Loss-Min is 19dB.

BAL-CC25-01D3 Image

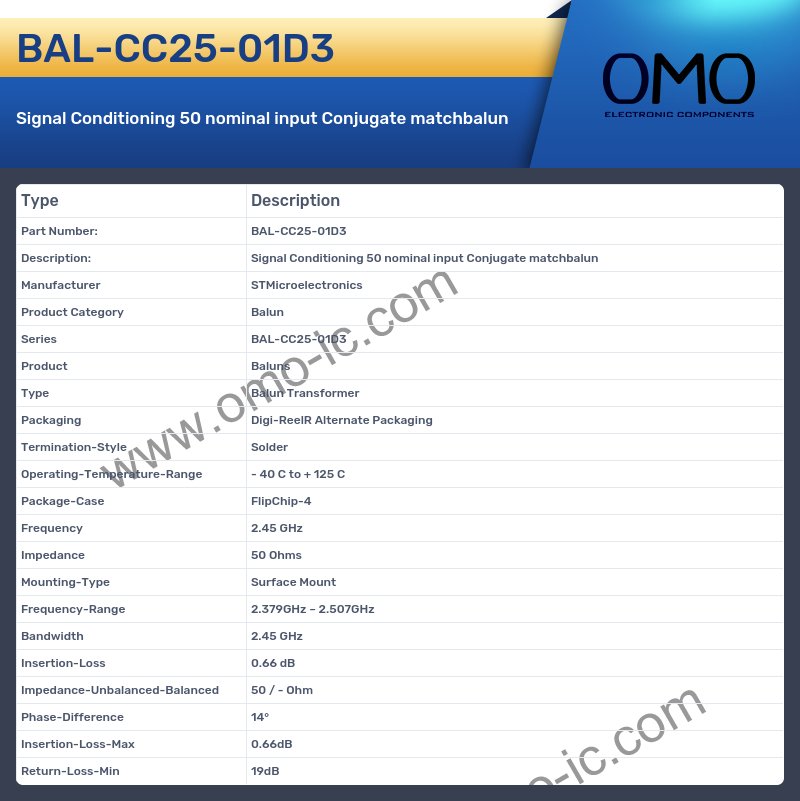

BAL-CC25-01D3 Specifications

• Manufacturer STMicroelectronics
• Product Category Balun
• Series BAL-CC25-01D3
• Product Baluns
• Type Balun Transformer
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style Solder
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case FlipChip-4
• Frequency 2.45 GHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.379GHz ~ 2.507GHz
• Bandwidth 2.45 GHz
• Insertion-Loss 0.66 dB
• Impedance-Unbalanced-Balanced 50 / - Ohm
• Phase-Difference 14°
• Insertion-Loss-Max 0.66dB
• Return-Loss-Min 19dB
