BAT30F4 Overview

Product belongs to the BAT30F4 series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 2-XFDFN Si is the technology used. Surface Mount mounting type Supplier device package: 201 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 50μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 310mV @ 10mA is the Voltage-Forward; Maximum DC reverse voltage 30V The 300mA Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: -30°C ~ 85°C Maximum operating temperature of + 85 C Minimum operating temperature: - 30 C Vf-Forward-Voltage: 270 mV at 10 mA Ir-Reverse-Current is 2.2 uA at 10 V. If-Forward-Current is 300 mA. VRRM (30 V) Reverse Voltage 4 A IFSM Forward Surge Current

BAT30F4 Image

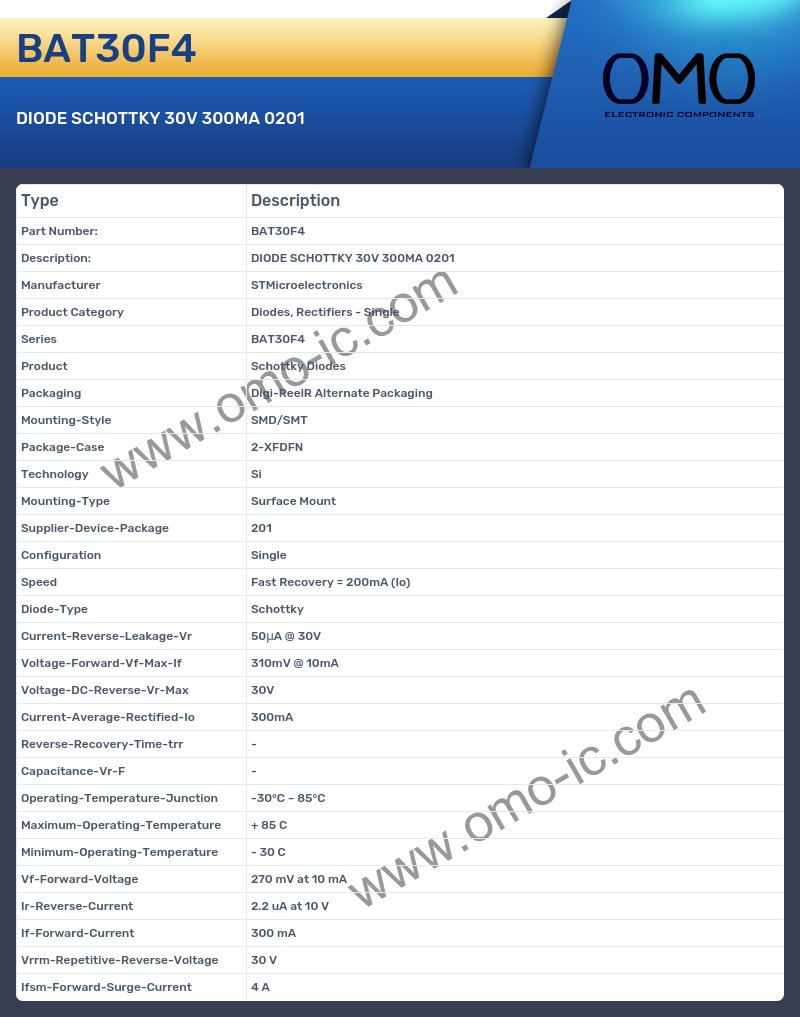

BAT30F4 Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series BAT30F4
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 2-XFDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package 201
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 50μA @ 30V
• Voltage-Forward-Vf-Max-If 310mV @ 10mA
• Voltage-DC-Reverse-Vr-Max 30V
• Current-Average-Rectified-Io 300mA
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction -30°C ~ 85°C
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 30 C
• Vf-Forward-Voltage 270 mV at 10 mA
• Ir-Reverse-Current 2.2 uA at 10 V
• If-Forward-Current 300 mA
• Vrrm-Repetitive-Reverse-Voltage 30 V
• Ifsm-Forward-Surge-Current 4 A
