BAT54AFILM

BAT54AFILM Overview

Product belongs to the BAT54 series. This product is categorized as Schottky Diodes Reel is the packaging method for this product Weight of 0.007090 oz SMD/SMT Mounting-Style SOT-23 Si is the technology used. Configuration Dual Common Anode Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.9 V at 0.1 A Ir-Reverse-Current is 1 uA at 30 V. If-Forward-Current is 0.3 A. VRRM (40 V) Reverse Voltage 1 A IFSM Forward Surge Current The 5 ns TRR-Reverse-Recovery-time

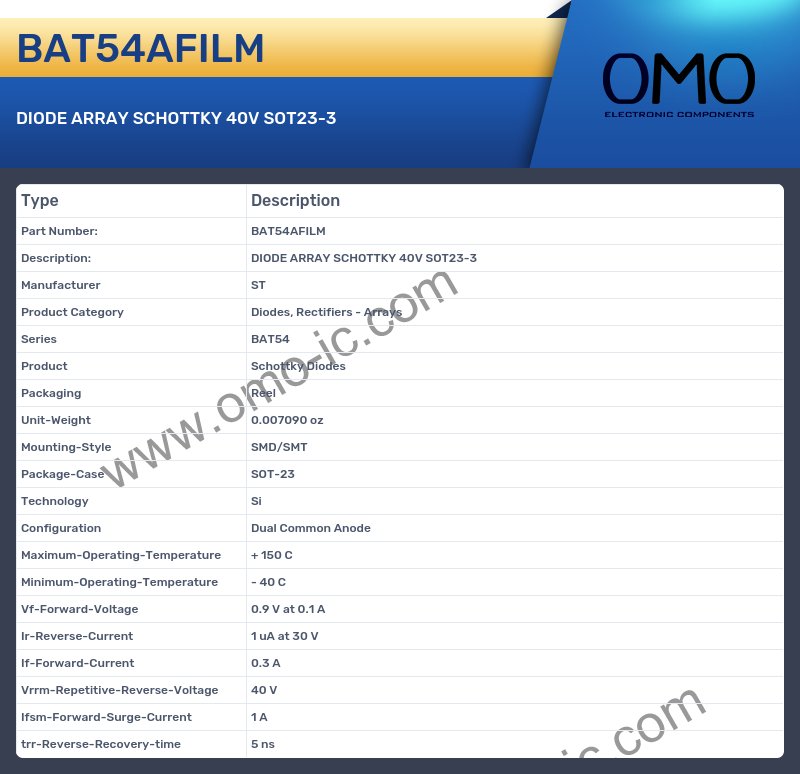

BAT54AFILM Image

BAT54AFILM Specifications

• Manufacturer ST
• Product Category Diodes, Rectifiers - Arrays
• Series BAT54
• Product Schottky Diodes
• Packaging Reel
• Unit-Weight 0.007090 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23
• Technology Si
• Configuration Dual Common Anode
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 0.9 V at 0.1 A
• Ir-Reverse-Current 1 uA at 30 V
• If-Forward-Current 0.3 A
• Vrrm-Repetitive-Reverse-Voltage 40 V
• Ifsm-Forward-Surge-Current 1 A
• trr-Reverse-Recovery-time 5 ns
