BAT54FILMY

BAT54FILMY Overview

Product belongs to the Q Automotive series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Si is the technology used. Surface Mount mounting type Supplier device package: SOT-23 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 900mV @ 100mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 300mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 10pF @ 1V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 150°C Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 240 mV Ir-Reverse-Current is 100 uA. If-Forward-Current is 300 mA. VRRM (40 V) Reverse Voltage 1 A IFSM Forward Surge Current

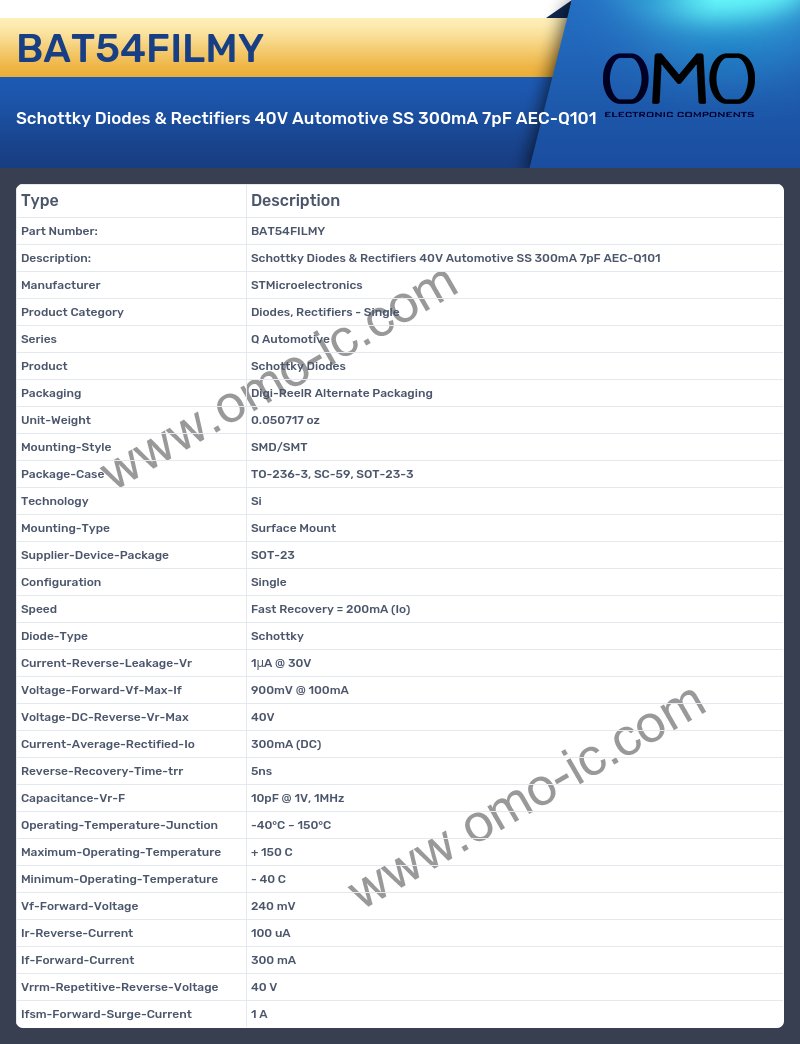

BAT54FILMY Image

BAT54FILMY Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series Q Automotive
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case TO-236-3, SC-59, SOT-23-3
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1μA @ 30V
• Voltage-Forward-Vf-Max-If 900mV @ 100mA
• Voltage-DC-Reverse-Vr-Max 40V
• Current-Average-Rectified-Io 300mA (DC)
• Reverse-Recovery-Time-trr 5ns
• Capacitance-Vr-F 10pF @ 1V, 1MHz
• Operating-Temperature-Junction -40°C ~ 150°C
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 240 mV
• Ir-Reverse-Current 100 uA
• If-Forward-Current 300 mA
• Vrrm-Repetitive-Reverse-Voltage 40 V
• Ifsm-Forward-Surge-Current 1 A
