BLUENRG-MSCSP

BLUENRG-MSCSP Overview

Product belongs to the - series. Type: TxRx + MCU Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WLCSP-34 This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Sensitivity: -88dBm Voltage Supply Range: 1.7 V ~ 3.6 V This product comes with a 64kB Flash, 12kB RAM memory size. Program memory type: Flash Data rate maximum is 1Mbps . Serial Interfaces: SPI 8dBm Current receiving is 7.3mA ~ 14.5mA Bluetooth is the RF family standard. GFSK modulated The device has GPIOs. 5.8mA ~ 28.8mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.7 V to 3.6 V supply voltage for reliable performance. SPI interface type The operating frequency is 2.4 GHz to 2.4835 GHz. Processor Core: ARM Cortex M0 This product is powered by the BlueNRG Bluetooth Processor-Series, providing high performance and efficiency. The 32 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.7 V Maximum clock frequency of 32 MHz This product has a 12 kB data RAM size, providing ample storage for complex applications. This product utilizes RAM, providing fast and efficient data storage.

BLUENRG-MSCSP Image

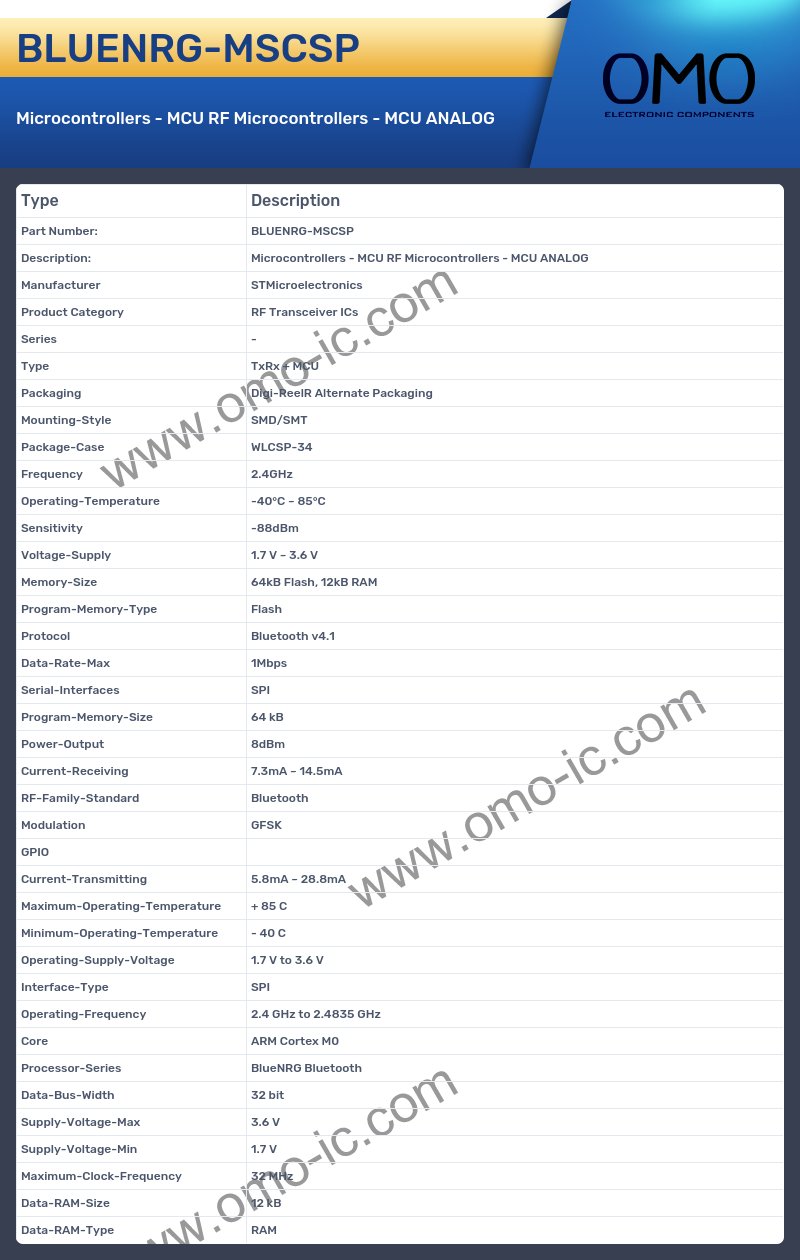

BLUENRG-MSCSP Specifications

• Manufacturer STMicroelectronics
• Product Category RF Transceiver ICs
• Series -
• Type TxRx + MCU
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WLCSP-34
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 85°C
• Sensitivity -88dBm
• Voltage-Supply 1.7 V ~ 3.6 V
• Memory-Size 64kB Flash, 12kB RAM
• Program-Memory-Type Flash
• Protocol Bluetooth v4.1
• Data-Rate-Max 1Mbps
• Serial-Interfaces SPI
• Program-Memory-Size 64 kB
• Power-Output 8dBm
• Current-Receiving 7.3mA ~ 14.5mA
• RF-Family-Standard Bluetooth
• Modulation GFSK
• GPIO
• Current-Transmitting 5.8mA ~ 28.8mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.7 V to 3.6 V
• Interface-Type SPI
• Operating-Frequency 2.4 GHz to 2.4835 GHz
• Core ARM Cortex M0
• Processor-Series BlueNRG Bluetooth
• Data-Bus-Width 32 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.7 V
• Maximum-Clock-Frequency 32 MHz
• Data-RAM-Size 12 kB
• Data-RAM-Type RAM
