BTW68-800RG

BTW68-800RG Overview

Product belongs to the BTW68 series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TOP-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TOP3 75mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.5V 50mA of Current-Gate-Trigger-Igt-Max Maximum 2.1V On-State Voltage Its 19A Current-On-State-It-AV-Max 30A is the maximum Current-On-State-It-RMS. 20μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 400A, 420A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 75 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.5 V on this product. Gate-Trigger-Current-Igt: 50 mA; 420 A Non-Repetitive On-State Current The 0.02 mA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 2.1 V

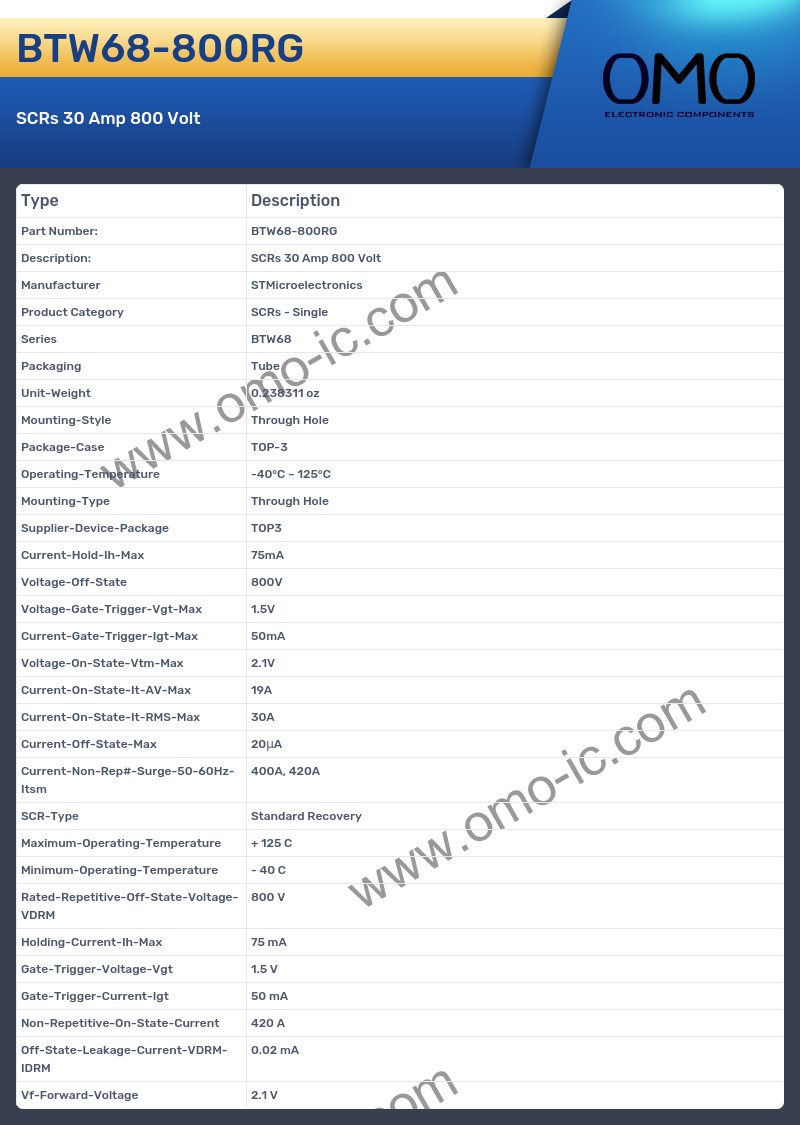

BTW68-800RG Image

BTW68-800RG Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series BTW68
• Packaging Tube
• Unit-Weight 0.238311 oz
• Mounting-Style Through Hole
• Package-Case TOP-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TOP3
• Current-Hold-Ih-Max 75mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.5V
• Current-Gate-Trigger-Igt-Max 50mA
• Voltage-On-State-Vtm-Max 2.1V
• Current-On-State-It-AV-Max 19A
• Current-On-State-It-RMS-Max 30A
• Current-Off-State-Max 20μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 400A, 420A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Holding-Current-Ih-Max 75 mA
• Gate-Trigger-Voltage-Vgt 1.5 V
• Gate-Trigger-Current-Igt 50 mA
• Non-Repetitive-On-State-Current 420 A
• Off-State-Leakage-Current-VDRM-IDRM 0.02 mA
• Vf-Forward-Voltage 2.1 V
