BZW04-5V8B

BZW04-5V8B Overview

Product belongs to the BZW04, TRANSIL series. Type: Zener Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.014110 oz Through Hole Mounting-Style This product's Termination-Style is ' Axial ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications 6.75 mm length of the product The 3.53 mm is at most 7.6 mm. DO-204AC, DO-15, Axial Operational temperature range: - Through Hole mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO-15 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.8V. The Voltage-Breakdown-Min is 6.45V. No Power-Line-Protection 1750pF @ 1MHz Capacitance-Frequency Power-off control: 400 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Breakdown-Voltage: 6.45 V Clamping-Voltage: 13.4 V 174 A Peak Surge Current 5.8 V working voltage Polarity: Bidirectional

BZW04-5V8B Image

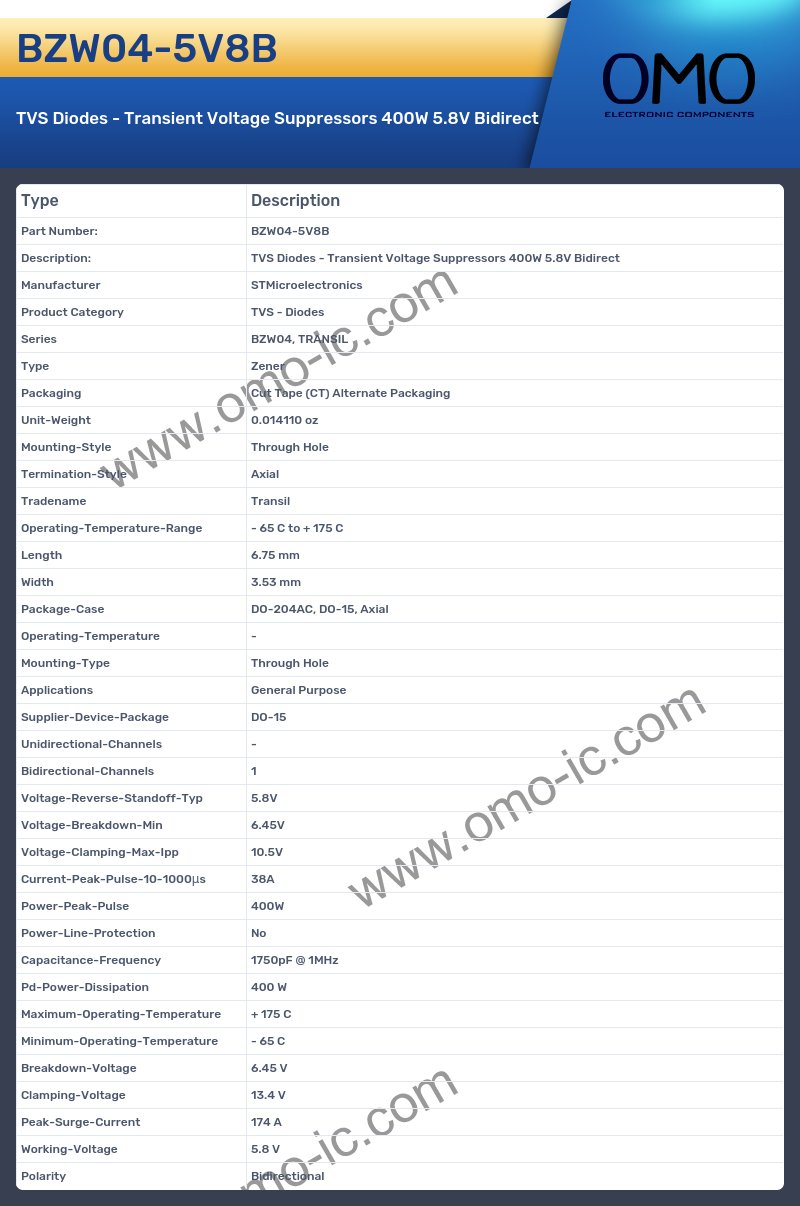

BZW04-5V8B Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series BZW04, TRANSIL
• Type Zener
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.014110 oz
• Mounting-Style Through Hole
• Termination-Style Axial
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Length 6.75 mm
• Width 3.53 mm
• Package-Case DO-204AC, DO-15, Axial
• Operating-Temperature -
• Mounting-Type Through Hole
• Applications General Purpose
• Supplier-Device-Package DO-15
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 5.8V
• Voltage-Breakdown-Min 6.45V
• Voltage-Clamping-Max-Ipp 10.5V
• Current-Peak-Pulse-10-1000μs 38A
• Power-Peak-Pulse 400W
• Power-Line-Protection No
• Capacitance-Frequency 1750pF @ 1MHz
• Pd-Power-Dissipation 400 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 6.45 V
• Clamping-Voltage 13.4 V
• Peak-Surge-Current 174 A
• Working-Voltage 5.8 V
• Polarity Bidirectional
