| Mfr. #: | CD4066BPW |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Analog Switch ICs CMOS Quad Bilateral |
| ライフサイクル: | メーカー新製品 |
| データシート: | CD4066BPW データシート |
Product belongs to the 4000B series. Type: Bilateral, FET Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-TSSOP Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 30 ns 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 7.5 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

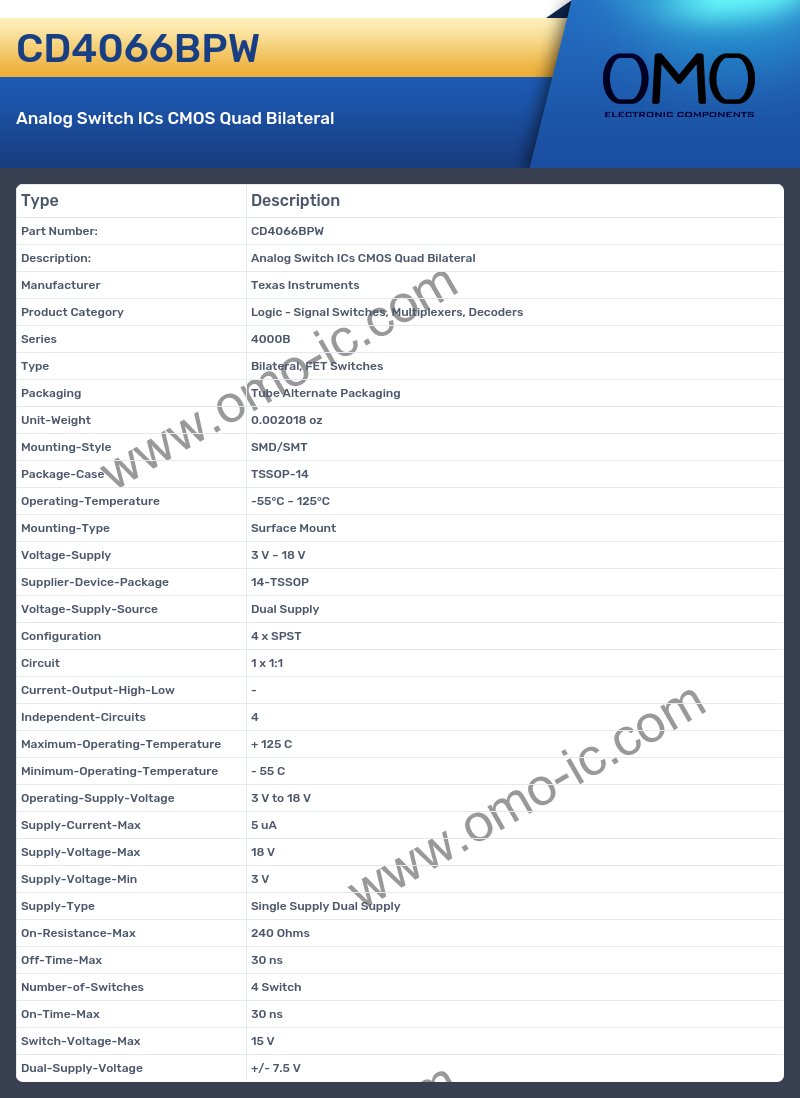

CD4066BPW Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 4000B
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Bilateral, FET Switches
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.002018 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TSSOP-14.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 125°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 3 V ~ 18 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 14-TSSOP.
A: Is the cutoff frequency of the product Voltage-Supply-Source?
Q: Yes, the product's Voltage-Supply-Source is indeed Dual Supply
A: At what frequency does the Configuration?
Q: The product Configuration is 4 x SPST.
A: At what frequency does the Circuit?
Q: The product Circuit is 1 x 1:1.
A: Is the cutoff frequency of the product Independent-Circuits?
Q: Yes, the product's Independent-Circuits is indeed 4
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Operating-Supply-Voltage?
Q: The product Operating-Supply-Voltage is 3 V to 18 V.
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 5 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 18 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 3 V.
A: At what frequency does the Supply-Type?
Q: The product Supply-Type is Single Supply Dual Supply.
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 240 Ohms.
A: At what frequency does the Off-Time-Max?
Q: The product Off-Time-Max is 30 ns.
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 4 Switch.
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 30 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: What is the Dual-Supply-Voltage of the product?
Q: The Dual-Supply-Voltage of the product is +/- 7.5 V.
