CDC2509PWR Overview

Product belongs to the CDC2509 series. Type: PLL Clock Driver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.003157 oz SMD/SMT Mounting-Style TSSOP-24 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 24-TSSOP Input type: LVTTL The LVTTL. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:09:00. Differential input and output are both available: No/No Maximum frequency of 125MHz No/No Divider-Multiplier Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V

CDC2509PWR Image

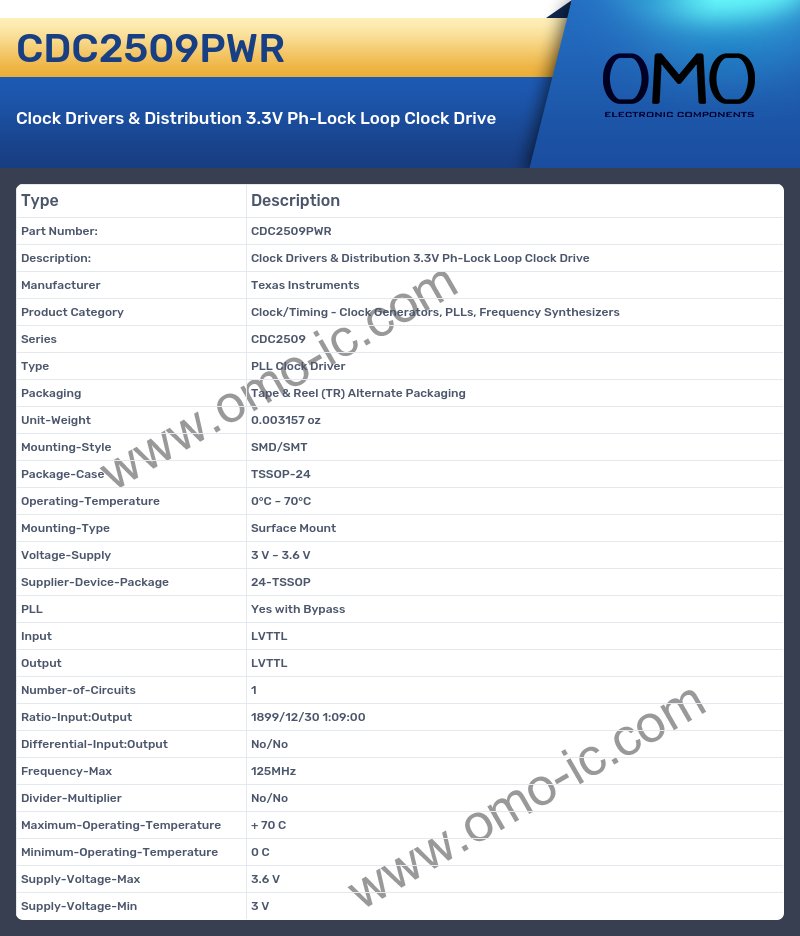

CDC2509PWR Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDC2509
• Type PLL Clock Driver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.003157 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 24-TSSOP
• PLL Yes with Bypass
• Input LVTTL
• Output LVTTL
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:09:00
• Differential-Input:Output No/No
• Frequency-Max 125MHz
• Divider-Multiplier No/No
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
