CDC5806PW

CDC5806PW Overview

Product belongs to the CDC5806 series. Type: PLL Clock Generator Tube Alternate Packaging is the packaging method for this product Weight of 0.002716 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 20-TSSOP Input type: LVCMOS, LVTTL The LVCMOS, LVTTL. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:06:00. Differential input and output are both available: No/No Maximum frequency of 74MHz Yes/No Divider-Multiplier Number-of-Outputs: 6 Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. 35 mA is 92 nA. Maximum-Input-Frequency: 54 MHz Maximum duty cycle of 60 % Maximum output frequency is 74 MHz. The jitter is 75 ps.

CDC5806PW Image

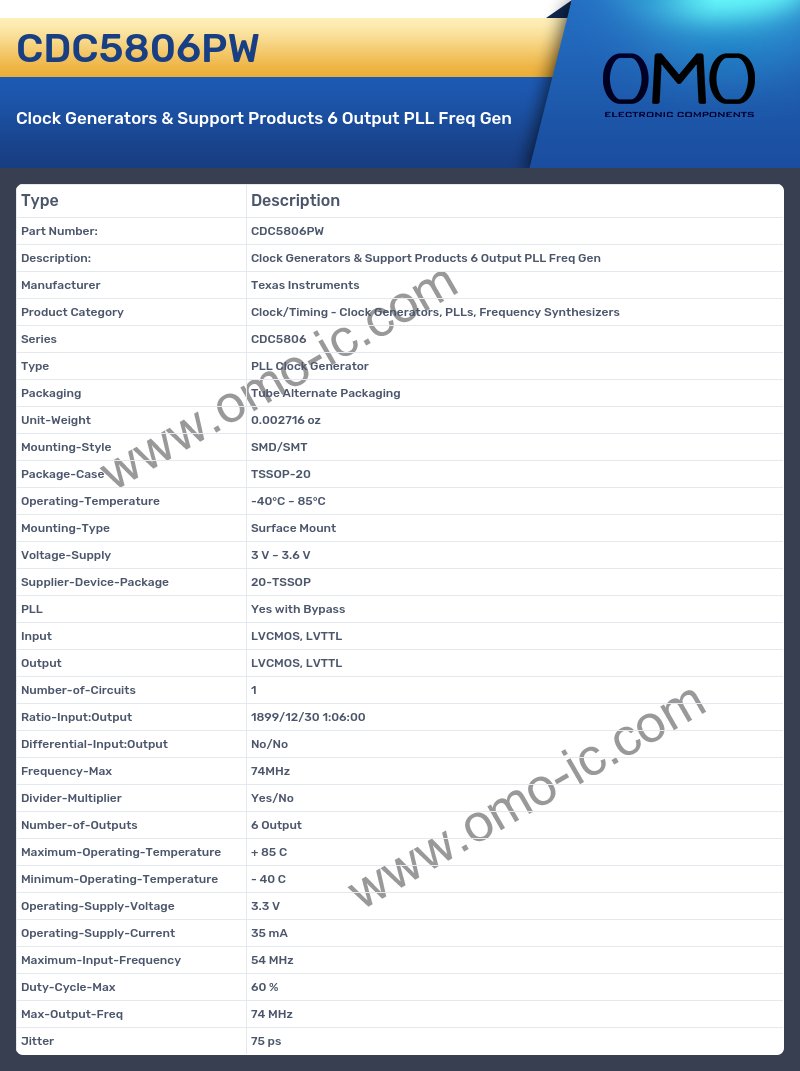

CDC5806PW Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDC5806
• Type PLL Clock Generator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002716 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 20-TSSOP
• PLL Yes with Bypass
• Input LVCMOS, LVTTL
• Output LVCMOS, LVTTL
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:06:00
• Differential-Input:Output No/No
• Frequency-Max 74MHz
• Divider-Multiplier Yes/No
• Number-of-Outputs 6 Output
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Operating-Supply-Current 35 mA
• Maximum-Input-Frequency 54 MHz
• Duty-Cycle-Max 60 %
• Max-Output-Freq 74 MHz
• Jitter 75 ps
