RoHS compliant with Details Input bias current of SMD/SMT Package type is VSON-FET-8 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 30 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 28 A; The Rds On - Drain-Source Resistance of the product is 3.7 mOhms. The Vgs - Gate-Source Voltage attribute for this product is 20 V. The 1.3 V Gate-Source Threshold Voltage of Vgs th; 13.2 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Reel is the packaging method for this product Configuration Single Fall Time of 7.9 ns Minimum Forward Transconductance of 110 S. - 55 C minimum operating temperature The power dissipation is 3.2 W. 17 ns Rise Time Product belongs to the CSD17501Q5A series. Trade name: NexFET. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 18 ns; The 10.4 ns typical turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

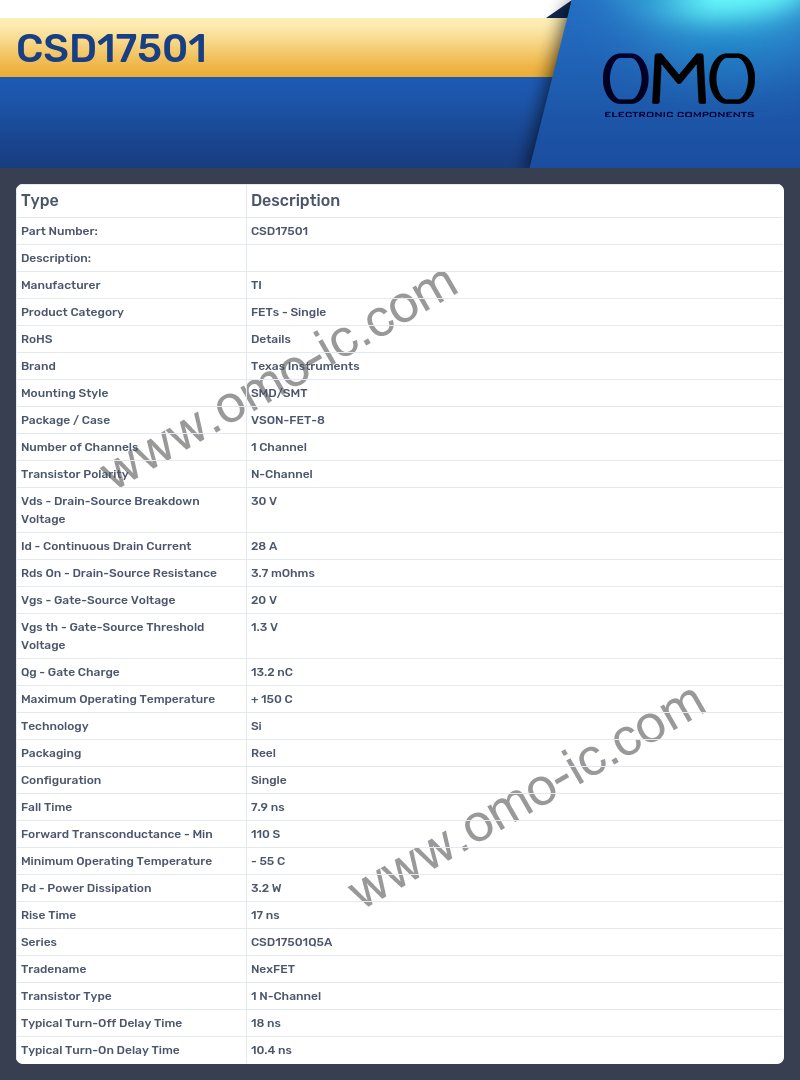

CSD17501 Specifications
