| Mfr. #: | CSD18504KCS |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Darlington Transistors MOSFET 40V N-Ch NexFET Pwr MOSFET |
| ライフサイクル: | メーカー新製品 |
| データシート: | CSD18504KCS データシート |
Product belongs to the CSD18504KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 93 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 4.2 ns of 16 ns. This product has a 5.2 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 85 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 1.9 V Vgs-th gate-source threshold voltage for efficient power management. The 10 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 11.2 ns This product has a 4.4 ns. Qg-Gate-Charge is 19 nC. This product features a 72 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

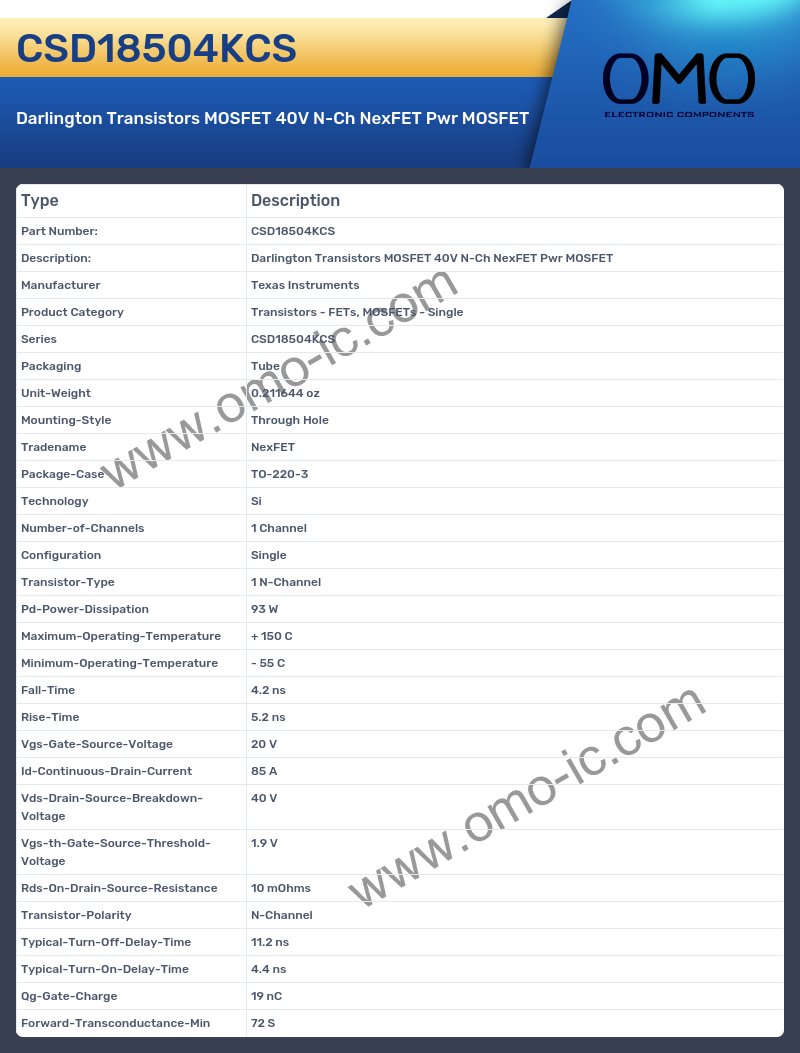

CSD18504KCS Specifications
