| Mfr. #: | CSD19534KCS |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | MOSFET N-CH 100V 100A TO220 |
| ライフサイクル: | メーカー新製品 |
| データシート: | CSD19534KCS データシート |
Product belongs to the CSD19534KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 118 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 1 ns of 16 ns. This product has a 2 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 54 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 2.4 V Vgs-th gate-source threshold voltage for efficient power management. The 16.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 9 ns This product has a 6 ns. Qg-Gate-Charge is 16.4 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

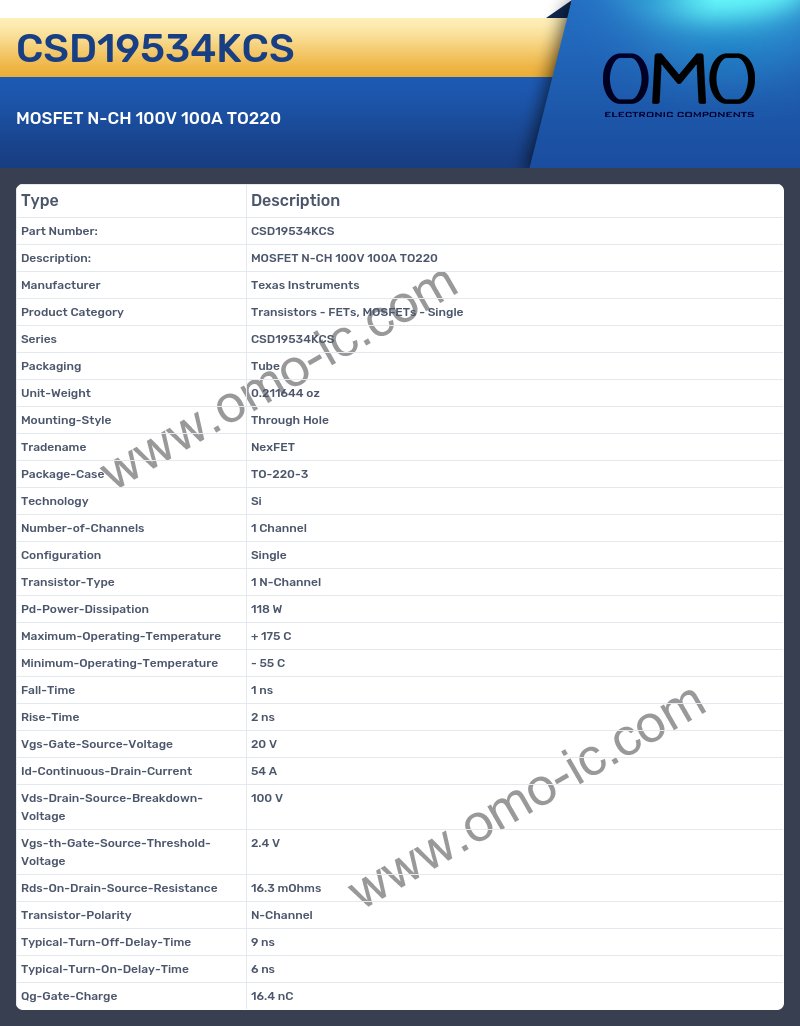

CSD19534KCS Specifications
A: At what frequency does the Series?
Q: The product Series is CSD19534KCS.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.211644 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed NexFET
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 118 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 1 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 2 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 20 V.
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 54 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 100 V.
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is 2.4 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 16.3 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 9 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 6 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 16.4 nC.
