CSD87350Q5D Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 8-PowerLDFN Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 8-LSON (5x6) Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 30V This product has an 1770pF @ 15V value of 300pF @ 25V. This product's Logic Level Gate. 40A continuous drain-ID current at 25°C; This product has an 5.9 mOhm @ 20A, 8V of 12 Ohm @ 150mA, 0V. Power-off control: 12 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 2.3 ns of 16 ns. This product has a 17 ns of 16 ns. This product's 10 V. The ID of continuous drain current is 40 A 40 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V 30 V. The 5 mOhms 1.2 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel.

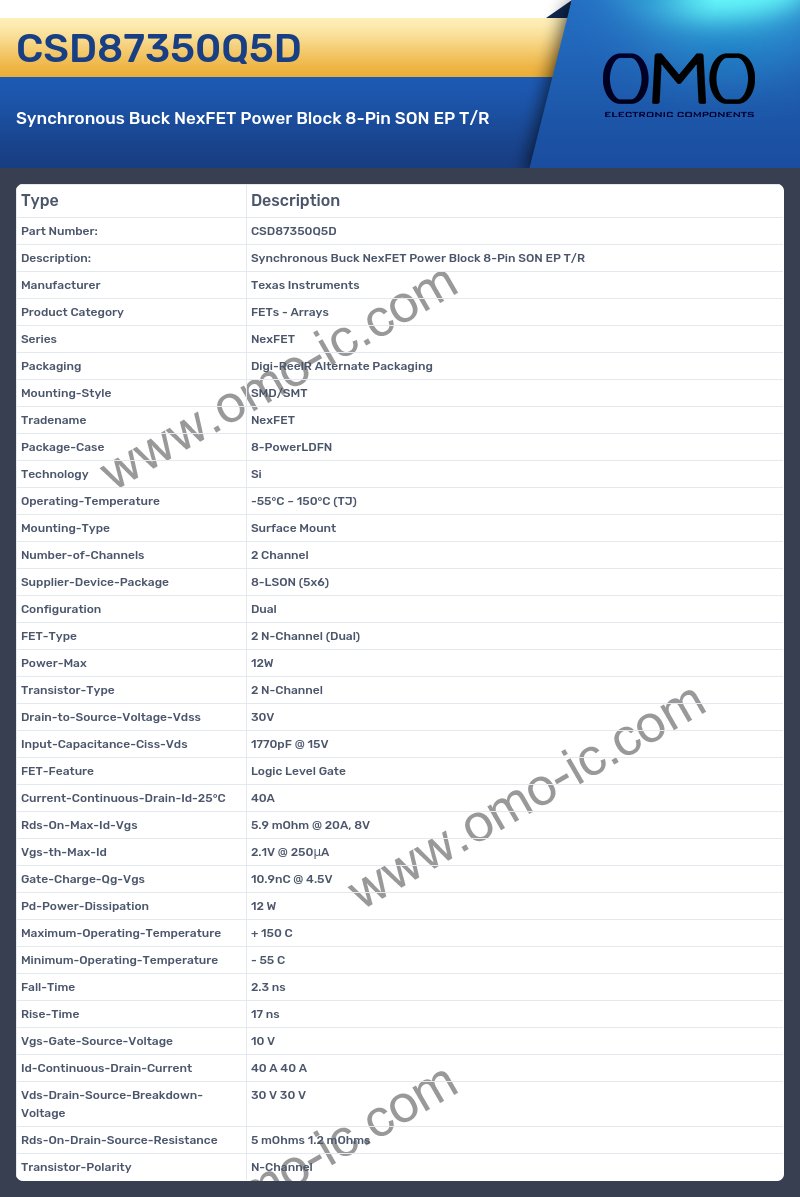

CSD87350Q5D Image

CSD87350Q5D Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 8-PowerLDFN
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-LSON (5x6)
• Configuration Dual
• FET-Type 2 N-Channel (Dual)
• Power-Max 12W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 1770pF @ 15V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 40A
• Rds-On-Max-Id-Vgs 5.9 mOhm @ 20A, 8V
• Vgs-th-Max-Id 2.1V @ 250μA
• Gate-Charge-Qg-Vgs 10.9nC @ 4.5V
• Pd-Power-Dissipation 12 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 2.3 ns
• Rise-Time 17 ns
• Vgs-Gate-Source-Voltage 10 V
• Id-Continuous-Drain-Current 40 A 40 A
• Vds-Drain-Source-Breakdown-Voltage 30 V 30 V
• Rds-On-Drain-Source-Resistance 5 mOhms 1.2 mOhms
• Transistor-Polarity N-Channel
