DAC7802KU

DAC7802KU Overview

Product belongs to the DAC7802 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 24-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is Multiplying DAC . External is the reference type. Number of D-A converters: 2 The 800ns is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Converters: 2 Converter 1.25 MS/s Sampling Rate

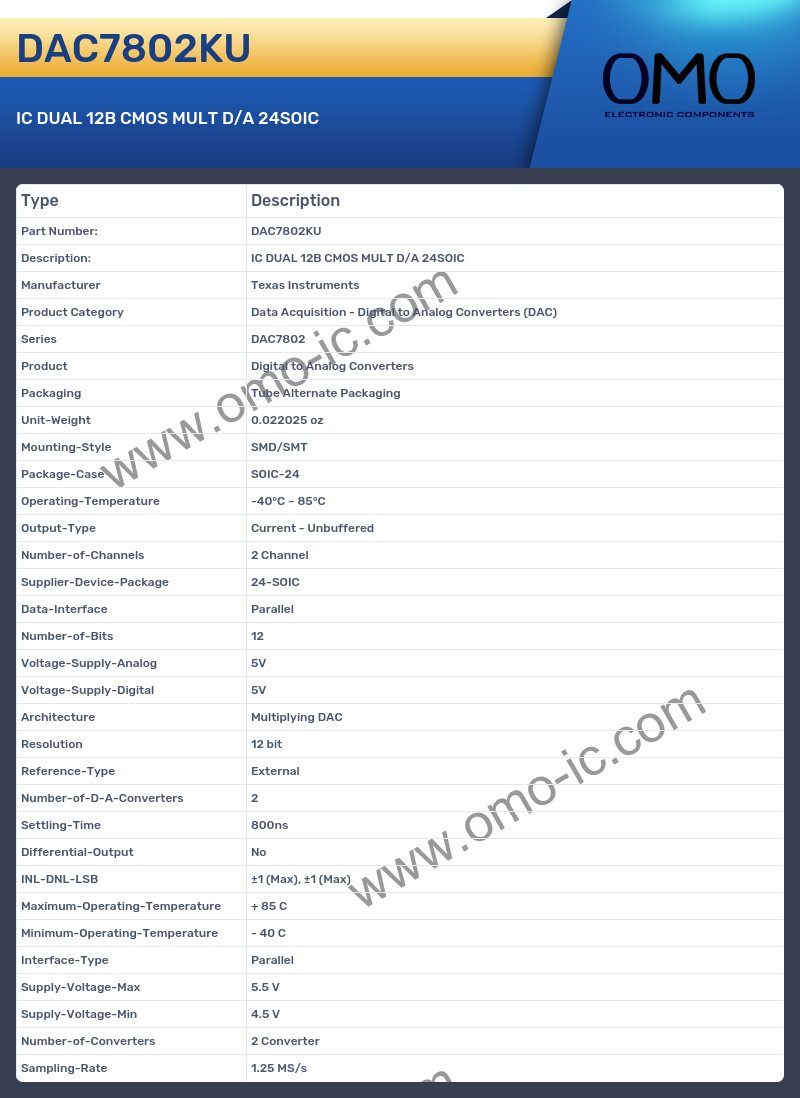

DAC7802KU Image

DAC7802KU Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7802
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 24-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture Multiplying DAC
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 800ns
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 2 Converter
• Sampling-Rate 1.25 MS/s
