DAC7802LUG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 24-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 24-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 800ns is an impressive 15 us. No Differential-Output

DAC7802LUG4 Image

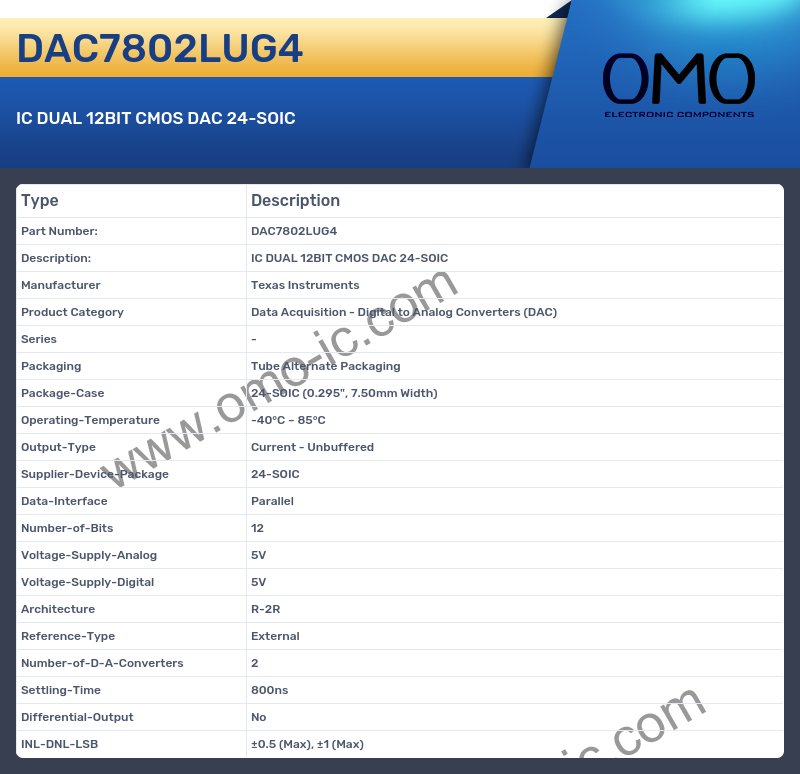

DAC7802LUG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 24-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 24-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 800ns
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
