DAC813KPG4

DAC813KPG4 Overview

Product belongs to the - series. Tube is the packaging method for this product 28-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 28-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is 11.4 V ~ 16.5 V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 1 The 6μs is an impressive 15 us. No Differential-Output

DAC813KPG4 Image

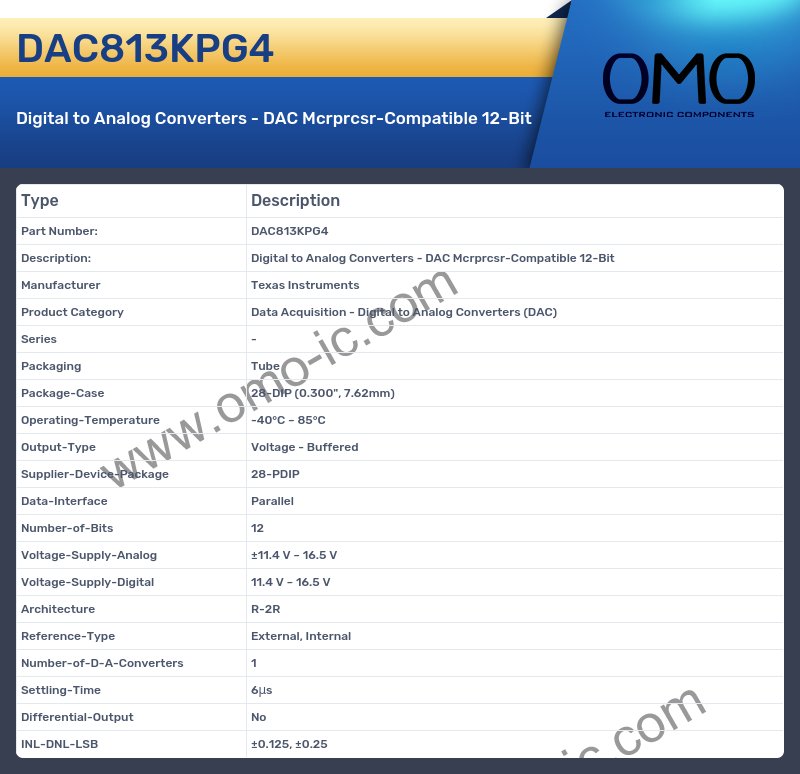

DAC813KPG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube
• Package-Case 28-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital 11.4 V ~ 16.5 V
• Architecture R-2R
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 6μs
• Differential-Output No
• INL-DNL-LSB ±0.125, ±0.25
