DAC8563TDSCR Overview

Product belongs to the DAC8563T series. Digi-ReelR Alternate Packaging is the packaging method for this product 10-WFDFN Exposed Pad Operational temperature range: -40°C ~ 125°C Output-Type: Voltage - Buffered Supplier device package: 10-WSON (3x3) Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External, Internal is the reference type. Number of D-A converters: 2 The 10μs (Typ) is an impressive 15 us. No Differential-Output

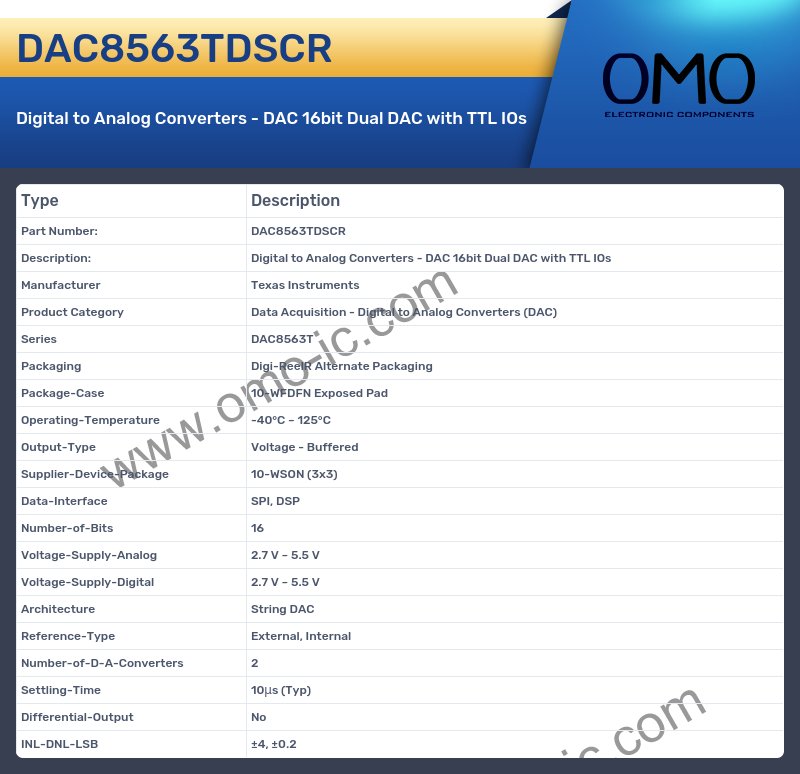

DAC8563TDSCR Image

DAC8563TDSCR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8563T
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 10-WFDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 10-WSON (3x3)
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±4, ±0.2
