DAC8564ICPWR

DAC8564ICPWR Overview

Product belongs to the DAC8564 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002222 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 105°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 16-TSSOP Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External, Internal is the reference type. Number of D-A converters: 4 The 10μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The DAC8564EVM. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 4 Converter 200 kS/s Sampling Rate

DAC8564ICPWR Image

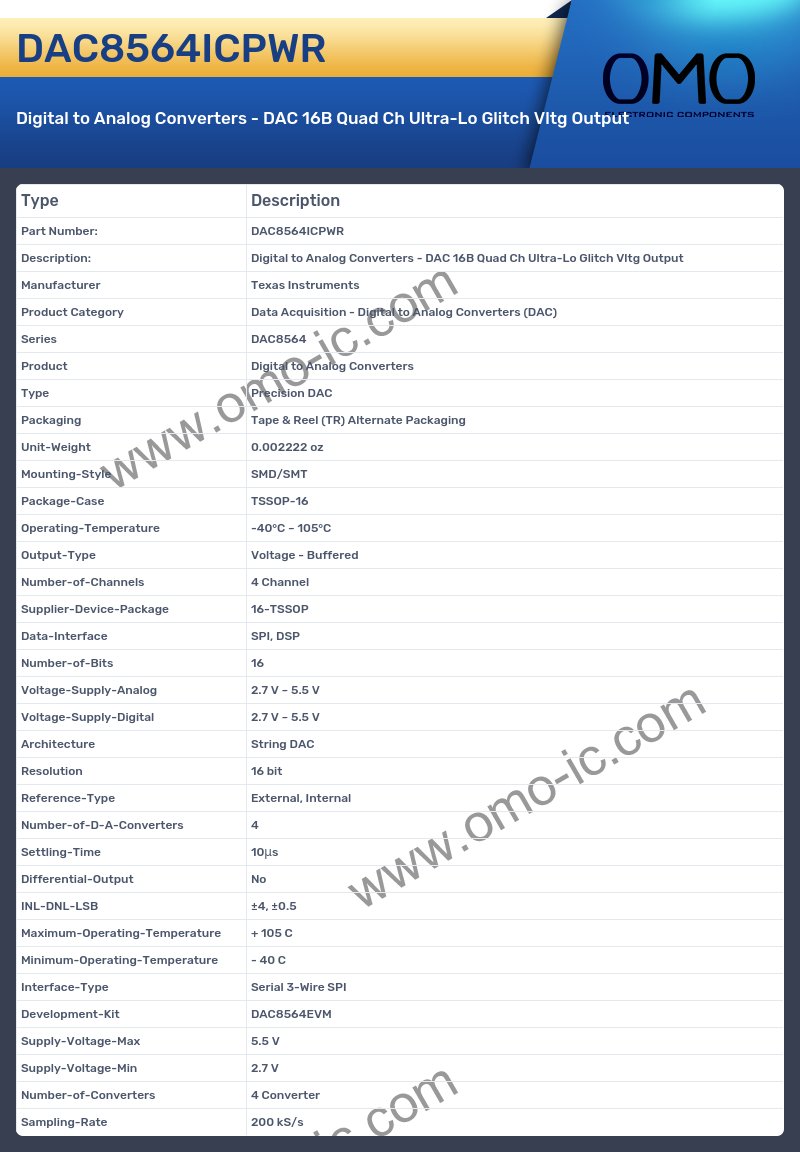

DAC8564ICPWR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8564
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002222 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 105°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-TSSOP
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 4
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±4, ±0.5
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Development-Kit DAC8564EVM
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 4 Converter
• Sampling-Rate 200 kS/s
