DCPL-WB-00D3

DCPL-WB-00D3 Overview

Product belongs to the DCPL-WB-00D3 series. This product is categorized as Directional Couplers Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 30 C to + 85 C operating temperature range for diverse applications 8-UFBGA, FCBGA This product's 824MHz ~ 2.17GHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Frequency Bandwidth: 824 MHz to 2170 MHz Versatile W-CDMA applications for maximum usability Supplier device package: Dual Band, Single Path Coupler-Type The 37dB coupling-factor The product's - is non-isolated. A 15dB Return-Loss

DCPL-WB-00D3 Image

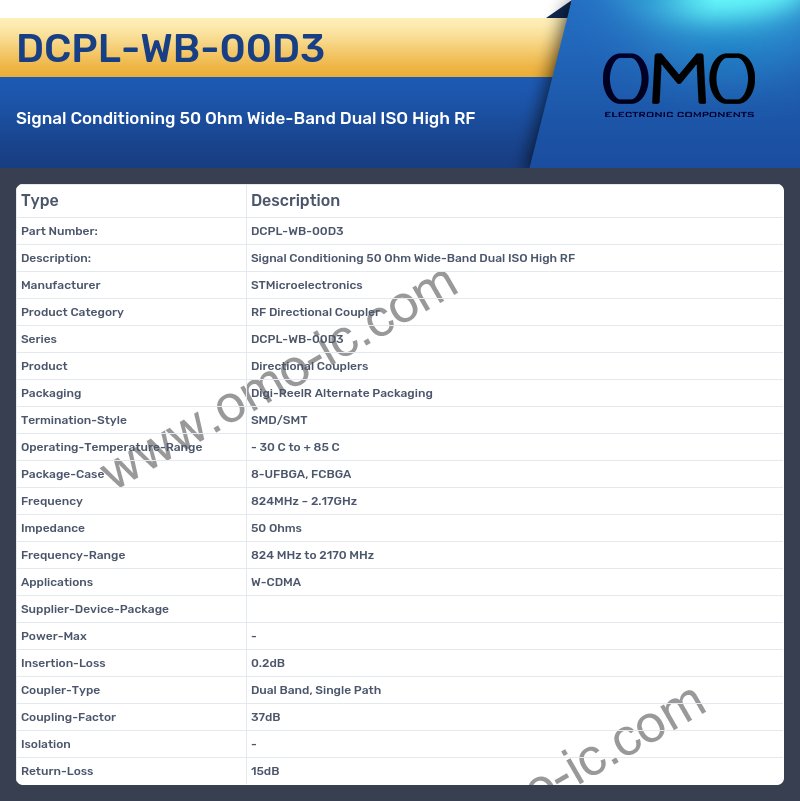

DCPL-WB-00D3 Specifications

• Manufacturer STMicroelectronics
• Product Category RF Directional Coupler
• Series DCPL-WB-00D3
• Product Directional Couplers
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 30 C to + 85 C
• Package-Case 8-UFBGA, FCBGA
• Frequency 824MHz ~ 2.17GHz
• Impedance 50 Ohms
• Frequency-Range 824 MHz to 2170 MHz
• Applications W-CDMA
• Supplier-Device-Package
• Power-Max -
• Insertion-Loss 0.2dB
• Coupler-Type Dual Band, Single Path
• Coupling-Factor 37dB
• Isolation -
• Return-Loss 15dB
