E-SG3525AP

E-SG3525AP Overview

Product belongs to the - series. Tube is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Down, Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 2 Topology: Buck, Push-Pull feedback Supply Voltage: 8 V ~ 35 V This product features 'Frequency-Switching' at 100Hz ~ 400kHz for optimal performance. The Control-Features include Enable, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.49 The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: -

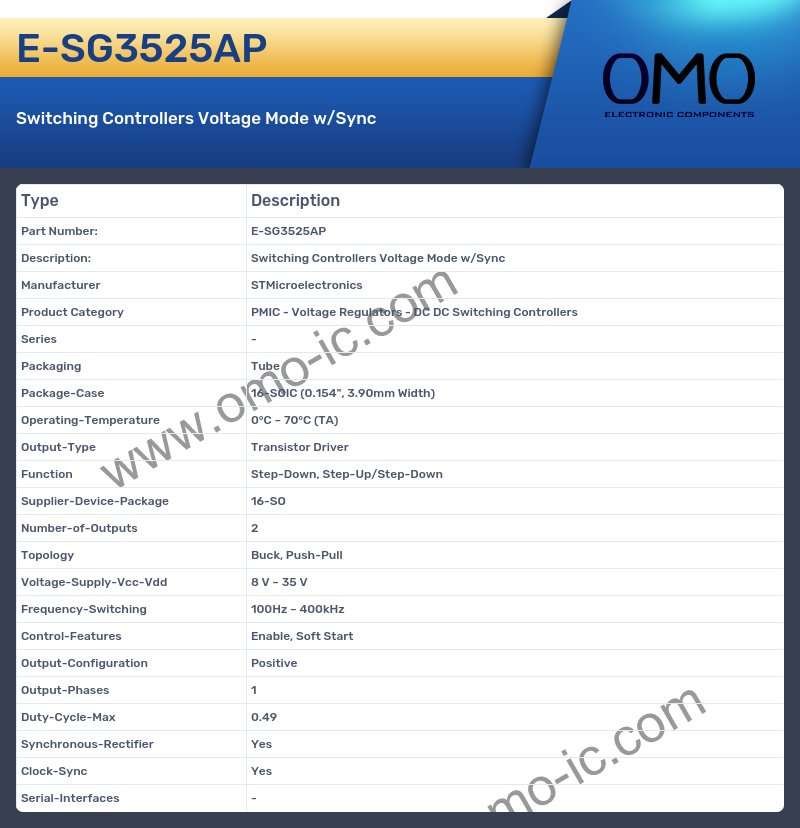

E-SG3525AP Image

E-SG3525AP Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 2
• Topology Buck, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 35 V
• Frequency-Switching 100Hz ~ 400kHz
• Control-Features Enable, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.49
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
