EMIF06-USD05F3

EMIF06-USD05F3 Overview

Product belongs to the EMIF series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.022" (0.55mm). 15-UFBGA, FCBGA RLC is the technology used. Operational temperature range: -30°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 6 Filter order is 3rd -30dB @ 900MHz of 10dB for superior noise reduction 40 Ohms Resistance Channel There are two Values: R = 40 Ohm, C = 11pF. ESD-Protection": " Yes

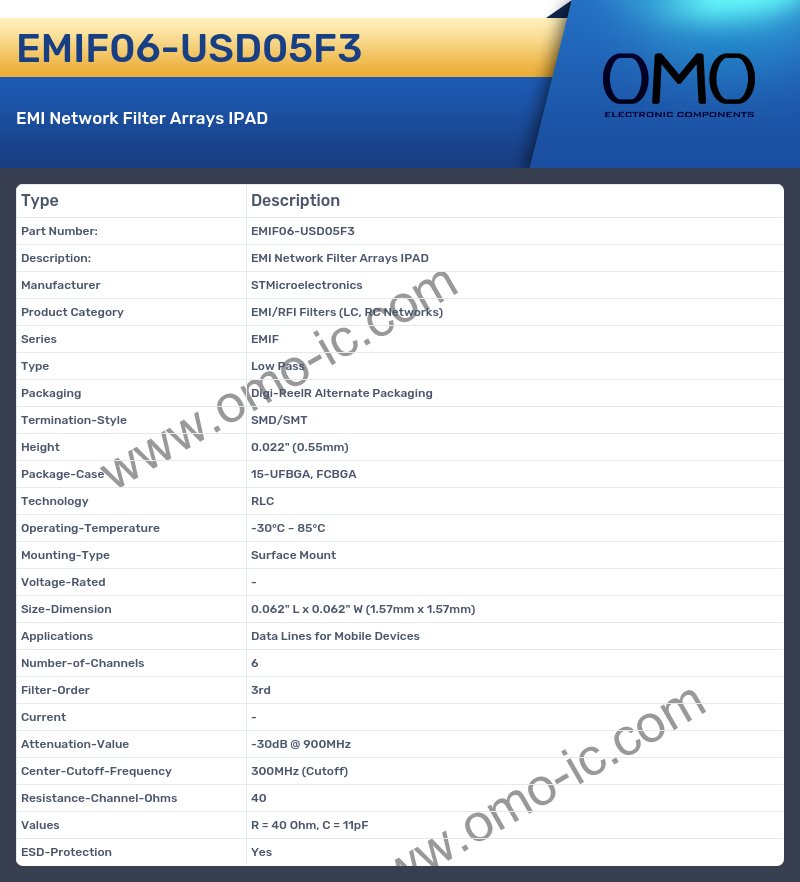

EMIF06-USD05F3 Image

EMIF06-USD05F3 Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series EMIF
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Height 0.022" (0.55mm)
• Package-Case 15-UFBGA, FCBGA
• Technology RLC
• Operating-Temperature -30°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.062" L x 0.062" W (1.57mm x 1.57mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 6
• Filter-Order 3rd
• Current -
• Attenuation-Value -30dB @ 900MHz
• Center-Cutoff-Frequency 300MHz (Cutoff)
• Resistance-Channel-Ohms 40
• Values R = 40 Ohm, C = 11pF
• ESD-Protection Yes
