EMIF08-1502M16

EMIF08-1502M16 Overview

Product belongs to the EMIF series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product The Height of the product is 0.024" (0.60mm). 16-UFDFN Exposed Pad RC (Pi) is the technology used. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 8 Filter order is 2nd 30dB @ 900MHz ~ 1.8GHz of 10dB for superior noise reduction 170 Ohms Resistance Channel There are two Values: R = 170 Ohms, C = 14pF (Total). ESD-Protection": " Yes

EMIF08-1502M16 Image

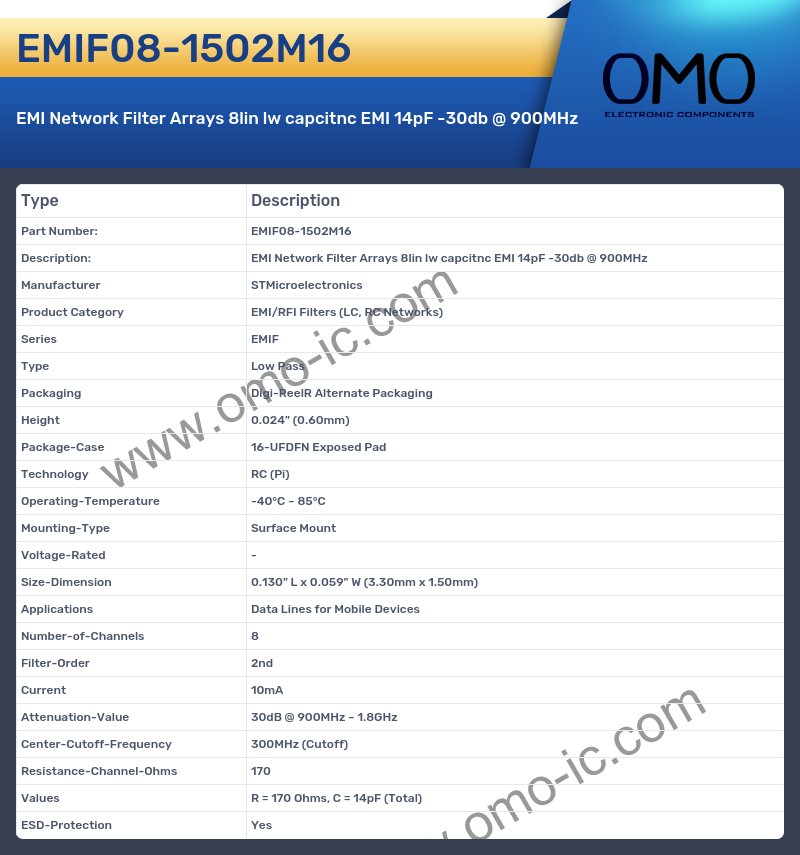

EMIF08-1502M16 Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series EMIF
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Height 0.024" (0.60mm)
• Package-Case 16-UFDFN Exposed Pad
• Technology RC (Pi)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.130" L x 0.059" W (3.30mm x 1.50mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 8
• Filter-Order 2nd
• Current 10mA
• Attenuation-Value 30dB @ 900MHz ~ 1.8GHz
• Center-Cutoff-Frequency 300MHz (Cutoff)
• Resistance-Channel-Ohms 170
• Values R = 170 Ohms, C = 14pF (Total)
• ESD-Protection Yes
