ESDALC5-1BT2Y

ESDALC5-1BT2Y Overview

Product belongs to the Automotive, AEC-Q101, ESDAY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SOD-882 Operational temperature range: -50°C ~ 125°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: SOD-882T 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5V. The Voltage-Breakdown-Min is 5.8V. No Power-Line-Protection 26pF @ 1MHz Capacitance-Frequency Power-off control: 150 W Maximum operating temperature of + 125 C Minimum operating temperature: - 50 C Breakdown-Voltage: 5.8 V 11 V Clamping-Voltage: 12.5 V 17.5 V 9 A Peak Surge Current Polarity: Bidirectional

ESDALC5-1BT2Y Image

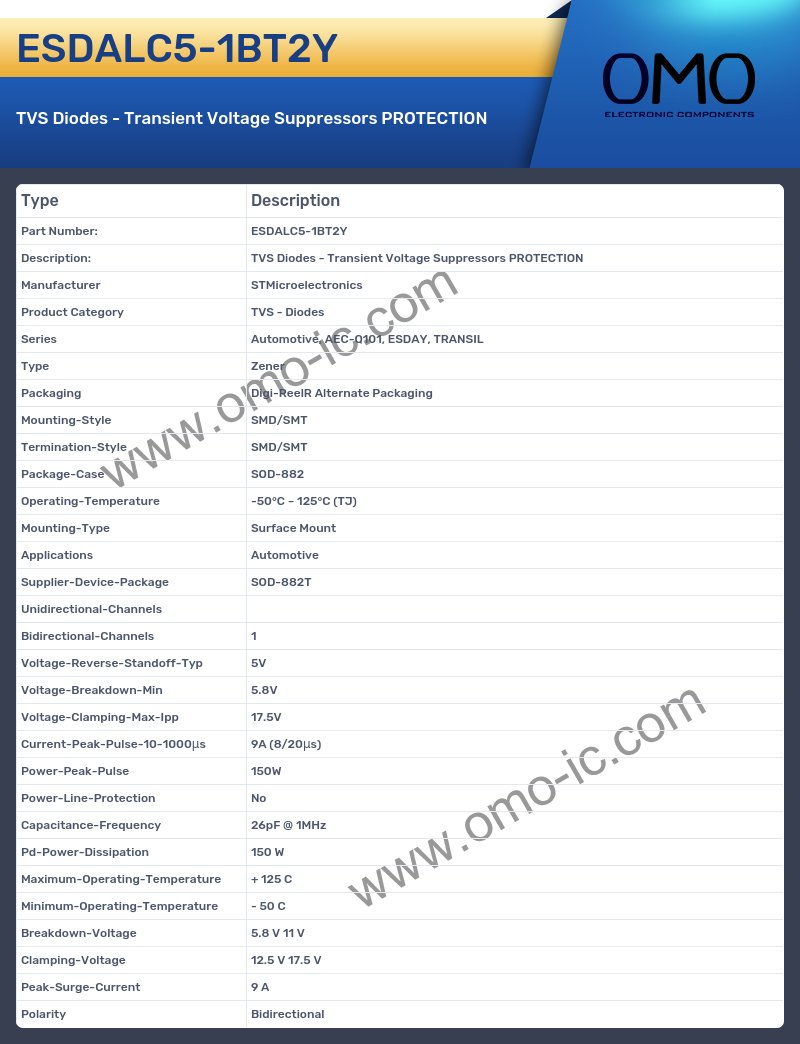

ESDALC5-1BT2Y Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, ESDAY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Package-Case SOD-882
• Operating-Temperature -50°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package SOD-882T
• Unidirectional-Channels
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 5V
• Voltage-Breakdown-Min 5.8V
• Voltage-Clamping-Max-Ipp 17.5V
• Current-Peak-Pulse-10-1000μs 9A (8/20μs)
• Power-Peak-Pulse 150W
• Power-Line-Protection No
• Capacitance-Frequency 26pF @ 1MHz
• Pd-Power-Dissipation 150 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 50 C
• Breakdown-Voltage 5.8 V 11 V
• Clamping-Voltage 12.5 V 17.5 V
• Peak-Surge-Current 9 A
• Polarity Bidirectional
