ESDARF03-1BF3

ESDARF03-1BF3 Overview

Product belongs to the ESDA series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 4-WFBGA, FCBGA Operational temperature range: -30°C ~ 85°C (TA) Surface Mount mounting type Versatile RF Antenna applications for maximum usability Number of channels: 1 Channel Supplier device package: 4-FlipChip 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6V. No Power-Line-Protection 0.6pF @ 1MHz Capacitance-Frequency Power-off control: 60 W Maximum operating temperature of + 85 C Minimum operating temperature: - 30 C Breakdown-Voltage: 6 V The Cd-Diode-Capacitance is 0.6 pF 3 V working voltage Polarity: Bidirectional 5 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

ESDARF03-1BF3 Image

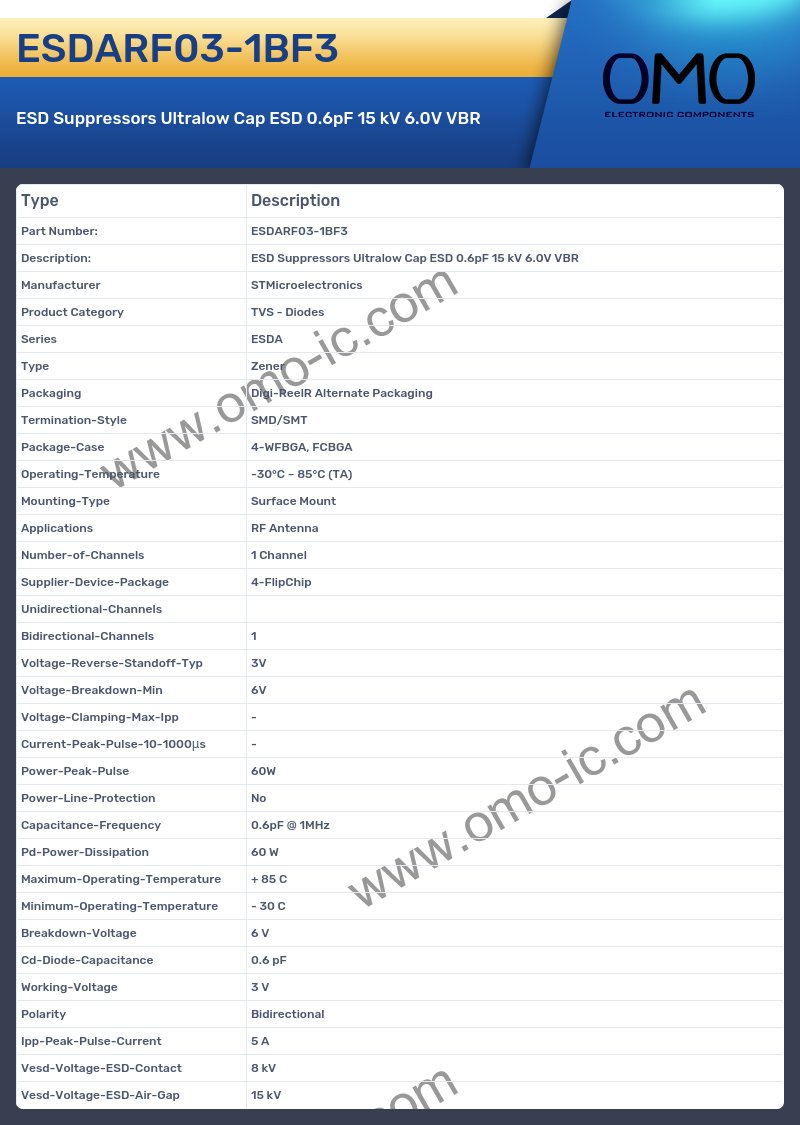

ESDARF03-1BF3 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 4-WFBGA, FCBGA
• Operating-Temperature -30°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications RF Antenna
• Number-of-Channels 1 Channel
• Supplier-Device-Package 4-FlipChip
• Unidirectional-Channels
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 60W
• Power-Line-Protection No
• Capacitance-Frequency 0.6pF @ 1MHz
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 30 C
• Breakdown-Voltage 6 V
• Cd-Diode-Capacitance 0.6 pF
• Working-Voltage 3 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 5 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
