ESDAVLC6-1V2

ESDAVLC6-1V2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 2-SMD, No Lead Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 1 Channel Supplier device package: ST01005 - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6V. No Power-Line-Protection 5pF @ 1MHz Capacitance-Frequency Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6 V Clamping-Voltage: 33 V The Cd-Diode-Capacitance is 5 pF 3 V working voltage Polarity: Unidirectional 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 3 V supply voltage for reliable performance.

ESDAVLC6-1V2 Image

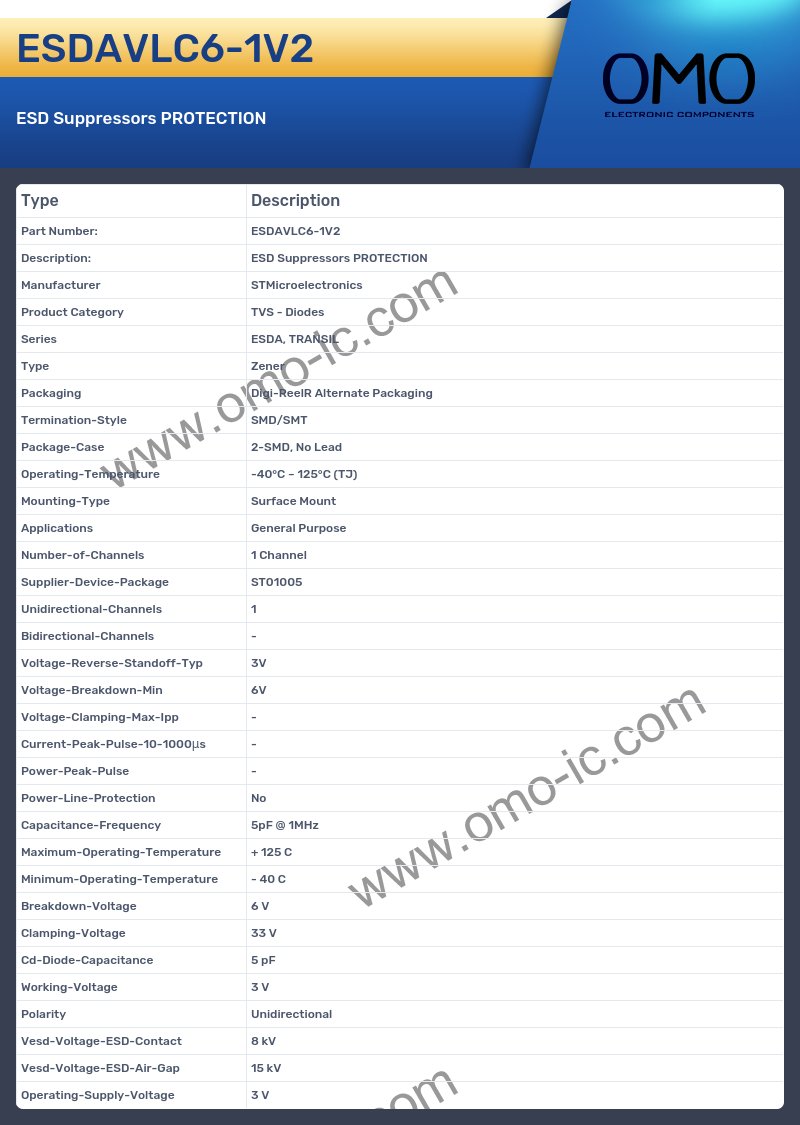

ESDAVLC6-1V2 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 2-SMD, No Lead
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 1 Channel
• Supplier-Device-Package ST01005
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse -
• Power-Line-Protection No
• Capacitance-Frequency 5pF @ 1MHz
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6 V
• Clamping-Voltage 33 V
• Cd-Diode-Capacitance 5 pF
• Working-Voltage 3 V
• Polarity Unidirectional
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 3 V
