ESDAXLC6-1BT2

ESDAXLC6-1BT2 Overview

Product belongs to the ESDA series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SOD-882 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 1 Channel Supplier device package: SOD-882T 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6V. No Power-Line-Protection 0.4pF @ 200MHz ~ 3GHz Capacitance-Frequency Power-off control: 40 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6 V Clamping-Voltage: 17 V The Cd-Diode-Capacitance is 0.4 pF 3 V working voltage Polarity: Bidirectional 1.3 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

ESDAXLC6-1BT2 Image

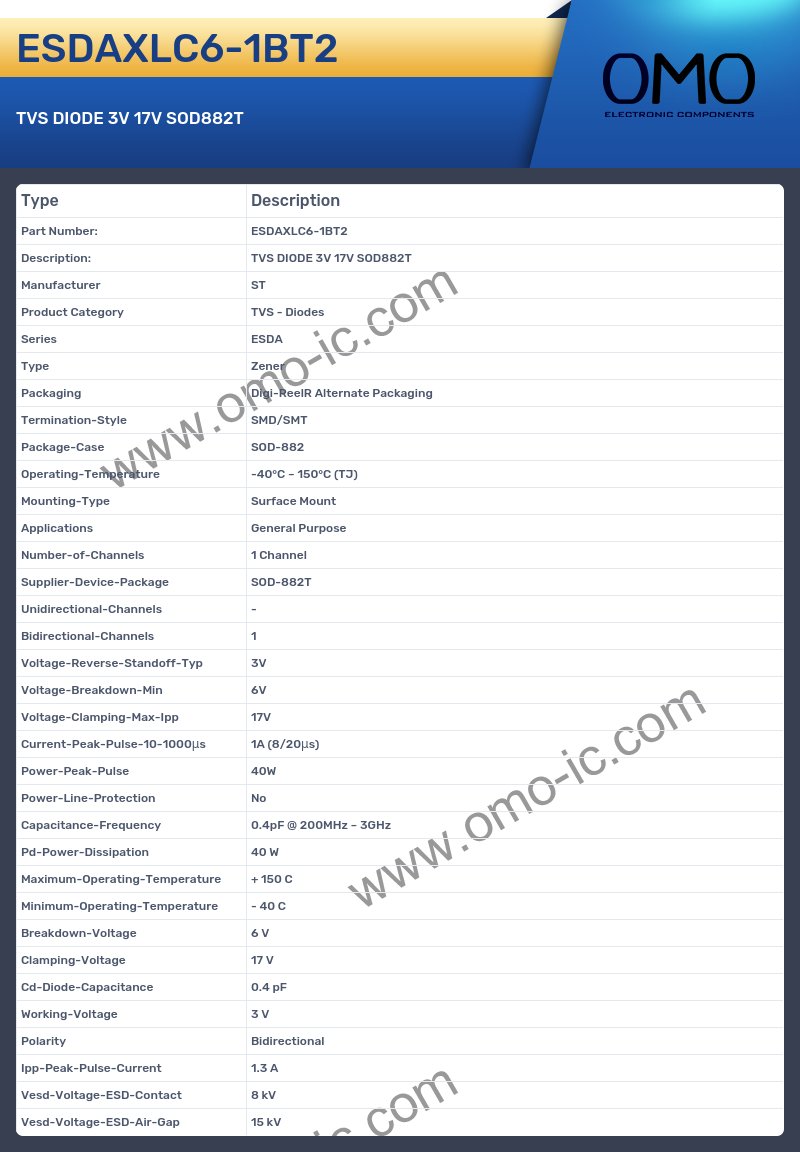

ESDAXLC6-1BT2 Specifications

• Manufacturer ST
• Product Category TVS - Diodes
• Series ESDA
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case SOD-882
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOD-882T
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp 17V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 40W
• Power-Line-Protection No
• Capacitance-Frequency 0.4pF @ 200MHz ~ 3GHz
• Pd-Power-Dissipation 40 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6 V
• Clamping-Voltage 17 V
• Cd-Diode-Capacitance 0.4 pF
• Working-Voltage 3 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 1.3 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
