HCF4013YM013TR

HCF4013YM013TR Overview

Product belongs to the Automotive, AEC-Q100, 4000 series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style SO-14 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 3 V ~ 20 V 2 is 8. 24MHz is 26GHz. 2 element D-Type Flip-Flop logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 20 V Minimum supply voltage is 3 V HCF logic type 150 ns is 23 microseconds. Number-of-Input-Lines: 8 Number-of-Output-Lines: 4

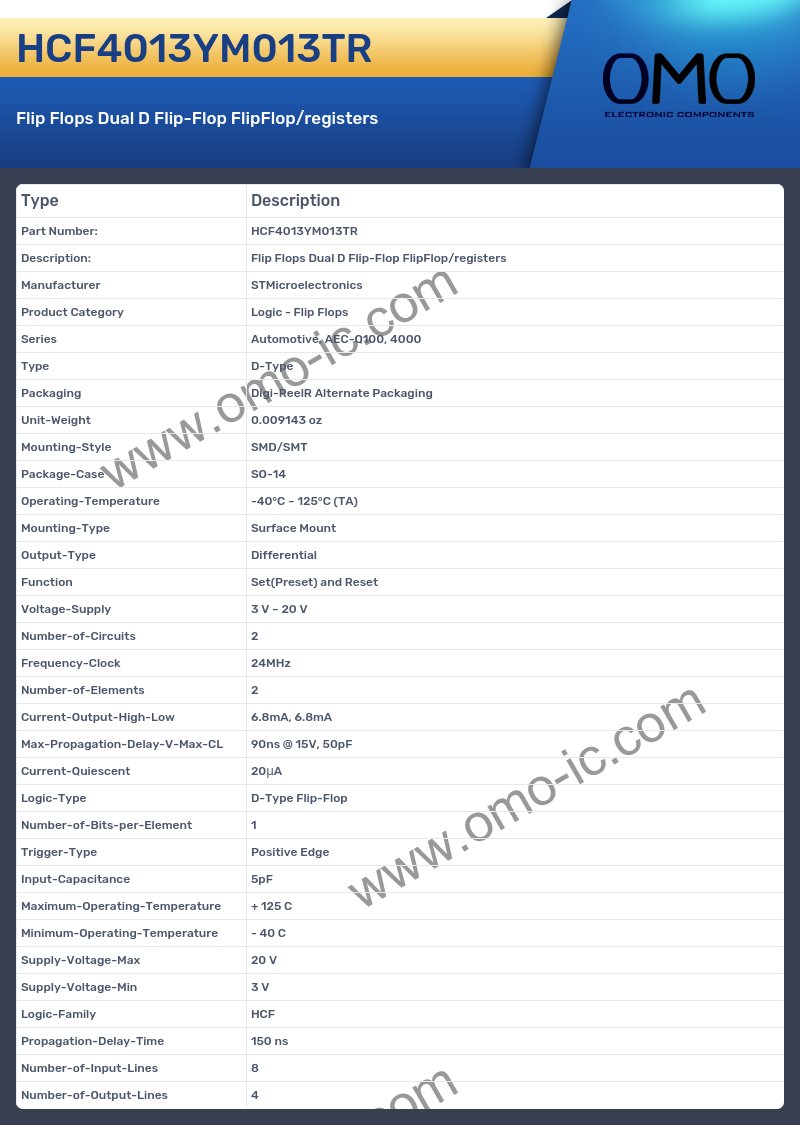

HCF4013YM013TR Image

HCF4013YM013TR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Flip Flops
• Series Automotive, AEC-Q100, 4000
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Package-Case SO-14
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 3 V ~ 20 V
• Number-of-Circuits 2
• Frequency-Clock 24MHz
• Number-of-Elements 2
• Current-Output-High-Low 6.8mA, 6.8mA
• Max-Propagation-Delay-V-Max-CL 90ns @ 15V, 50pF
• Current-Quiescent 20μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance 5pF
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 3 V
• Logic-Family HCF
• Propagation-Delay-Time 150 ns
• Number-of-Input-Lines 8
• Number-of-Output-Lines 4
