HCF4081M013TR

Mfr. #: HCF4081M013TR
メーカー: STMicroelectronics
説明: IC GATE AND 4CH 2-INP 14SO
ライフサイクル: メーカー新製品
データシート: HCF4081M013TR データシート
Due to semiconductor in short supply from 2021,below price is the Normal price before 2021.please send inquire to confirm.
Product Details
HCF4081M013TR Overview

Product belongs to the 4000 series. This product is categorized as Single-Function Gate Digi-ReelR is the packaging method for this product Weight of 0.008501 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 20 V Supplier device package: 14-SO 4 is 8. 4 Gate is the number of gates included in this product. 5μA maximum quiescent current. AND Gate logic type 1.5 V ~ 4 V is a Logic-Level-Low; 3.5 V ~ 11 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Maximum supply voltage of 20 V Minimum supply voltage is 3 V HCF40 logic type 250 ns is 23 microseconds. High-Level-Output-Current of - 2.4 mA 2.4 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output AND logic function

HCF4081M013TR Image

HCF4081M013TR

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

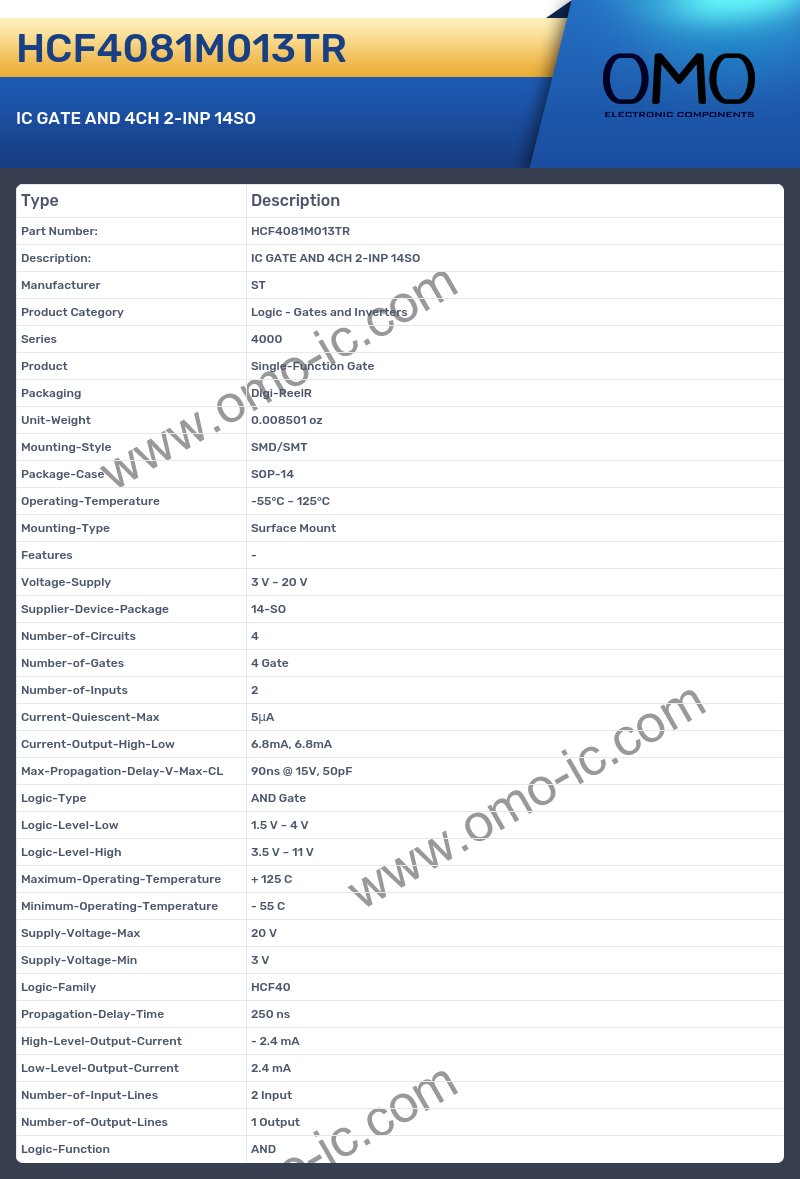

HCF4081M013TR Specifications
  • Manufacturer ST
  • Product Category Logic - Gates and Inverters
  • Series 4000
  • Product Single-Function Gate
  • Packaging Digi-ReelR
  • Unit-Weight 0.008501 oz
  • Mounting-Style SMD/SMT
  • Package-Case SOP-14
  • Operating-Temperature -55°C ~ 125°C
  • Mounting-Type Surface Mount
  • Features -
  • Voltage-Supply 3 V ~ 20 V
  • Supplier-Device-Package 14-SO
  • Number-of-Circuits 4
  • Number-of-Gates 4 Gate
  • Number-of-Inputs 2
  • Current-Quiescent-Max 5μA
  • Current-Output-High-Low 6.8mA, 6.8mA
  • Max-Propagation-Delay-V-Max-CL 90ns @ 15V, 50pF
  • Logic-Type AND Gate
  • Logic-Level-Low 1.5 V ~ 4 V
  • Logic-Level-High 3.5 V ~ 11 V
  • Maximum-Operating-Temperature + 125 C
  • Minimum-Operating-Temperature - 55 C
  • Supply-Voltage-Max 20 V
  • Supply-Voltage-Min 3 V
  • Logic-Family HCF40
  • Propagation-Delay-Time 250 ns
  • High-Level-Output-Current - 2.4 mA
  • Low-Level-Output-Current 2.4 mA
  • Number-of-Input-Lines 2 Input
  • Number-of-Output-Lines 1 Output
  • Logic-Function AND
