HMC322ALP4E

HMC322ALP4E Overview

Product belongs to the HMC322AG series. Cut Strip is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 24-QFN (4x4) Circuit type: SP8T Topology: Absorptive feedback P1dB is 26dBm RF-Type: - Frequency upper limit of 8GHz Power-off control: 348 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SP8T The operating frequency is DC to 8 GHz. Maximum off time: 150 ns Octal switch functionality Maximum on-time: 150 ns The 35 dB of this product is 35 dB.

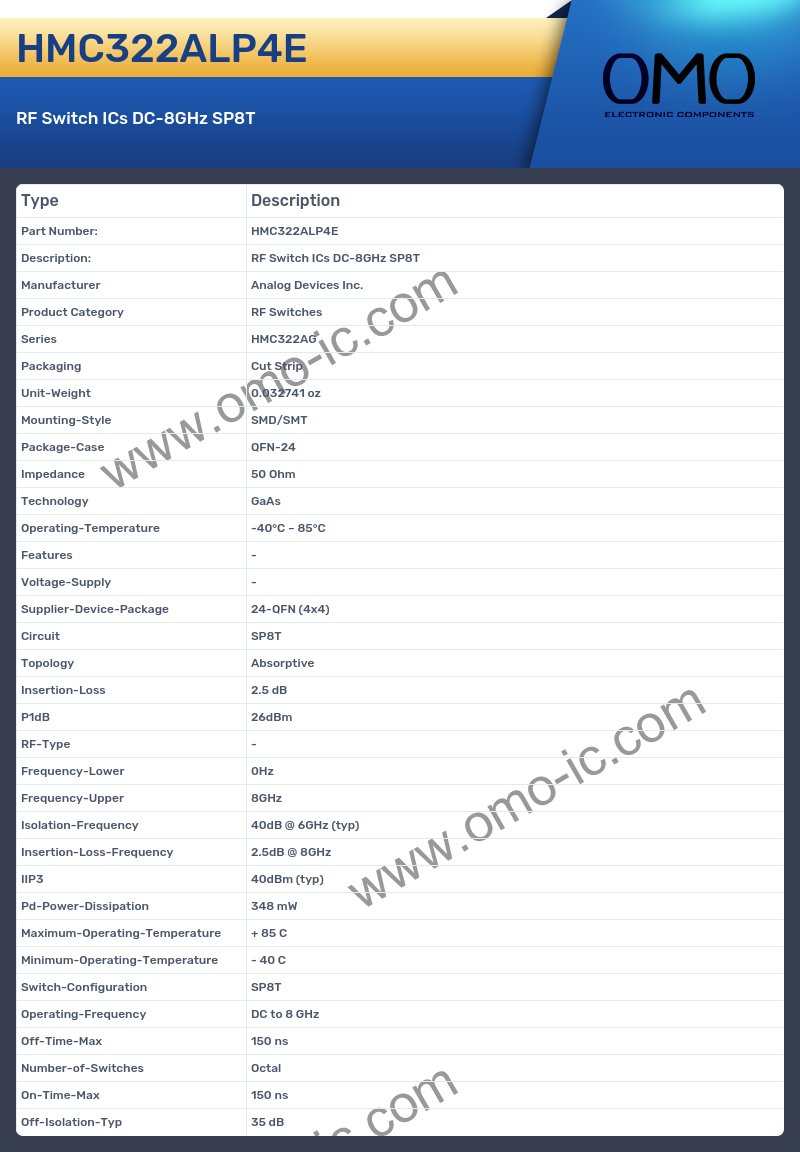

HMC322ALP4E Image

HMC322ALP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC322AG
• Packaging Cut Strip
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 24-QFN (4x4)
• Circuit SP8T
• Topology Absorptive
• Insertion-Loss 2.5 dB
• P1dB 26dBm
• RF-Type -
• Frequency-Lower 0Hz
• Frequency-Upper 8GHz
• Isolation-Frequency 40dB @ 6GHz (typ)
• Insertion-Loss-Frequency 2.5dB @ 8GHz
• IIP3 40dBm (typ)
• Pd-Power-Dissipation 348 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SP8T
• Operating-Frequency DC to 8 GHz
• Off-Time-Max 150 ns
• Number-of-Switches Octal
• On-Time-Max 150 ns
• Off-Isolation-Typ 35 dB
