HSP061-2M6

HSP061-2M6 Overview

Product belongs to the HSP series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 6-UFDFN Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Ethernet, HDMI applications for maximum usability Number of channels: 2 Channel Supplier device package: 6-uQFN (1.45x1) 2 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6V. Yes Power-Line-Protection 0.6pF @ 200MHz ~ 3GHz Capacitance-Frequency Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6 V Clamping-Voltage: 18 V The Cd-Diode-Capacitance is 0.6 pF 3 V working voltage Polarity: Bidirectional 30 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

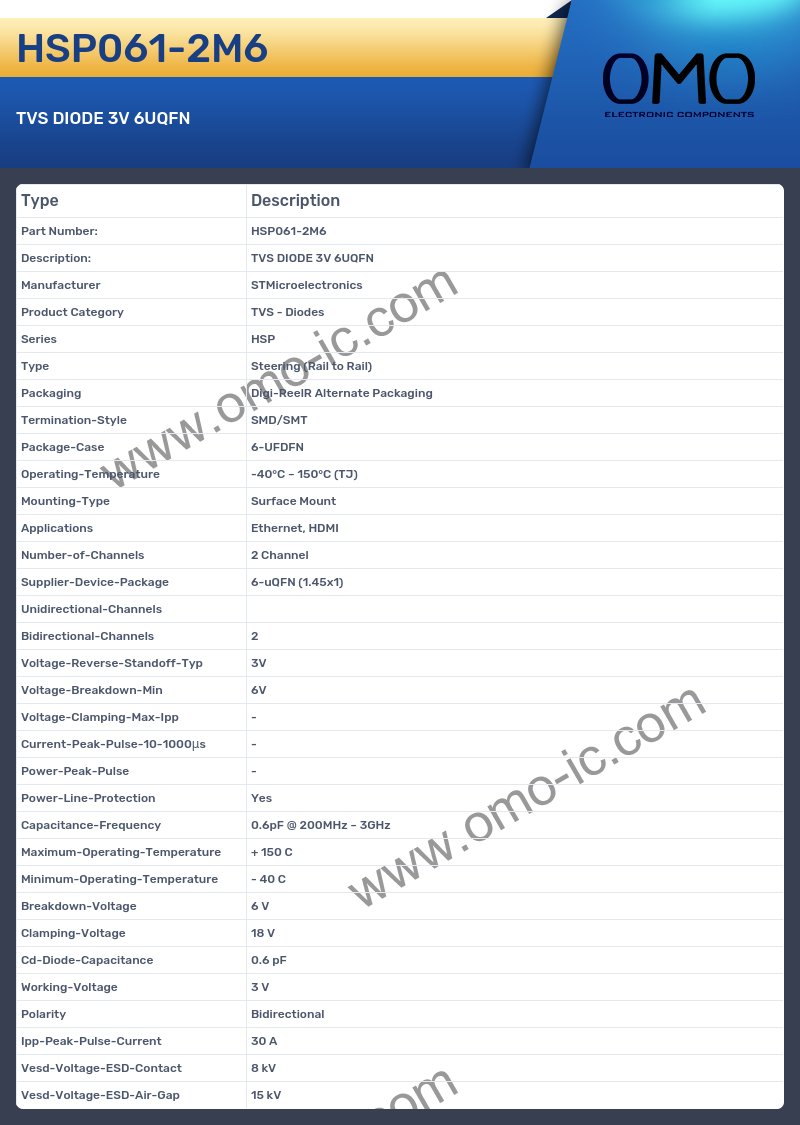

HSP061-2M6 Image

HSP061-2M6 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series HSP
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 6-UFDFN
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Ethernet, HDMI
• Number-of-Channels 2 Channel
• Supplier-Device-Package 6-uQFN (1.45x1)
• Unidirectional-Channels
• Bidirectional-Channels 2
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse -
• Power-Line-Protection Yes
• Capacitance-Frequency 0.6pF @ 200MHz ~ 3GHz
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6 V
• Clamping-Voltage 18 V
• Cd-Diode-Capacitance 0.6 pF
• Working-Voltage 3 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 30 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
