HVLED805

HVLED805 Overview

Product belongs to the HVLED805 series. Type: AC DC Offline Switcher Tube is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 This product's - range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile - applications for maximum usability Supplier device package: 16-SO Number-of-Outputs: 1 Current-Output-Channel is - This product has Yes. Topology: Flyback feedback The maximum voltage supply is 23V. The minimum 11.5V required for voltage supply. Output voltage: - Dimming control is done through PWM communication. Power-off control: 0.9 W Maximum operating temperature of + 125 C Minimum operating temperature: - 25 C The operating frequency is 166 kHz.

HVLED805 Image

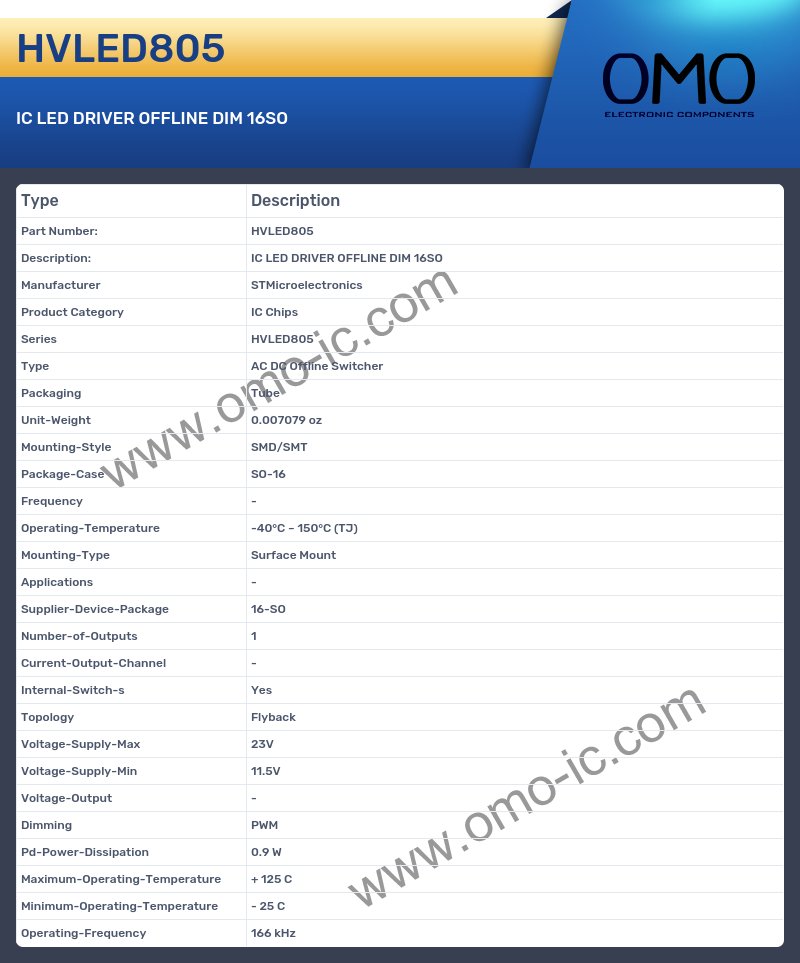

HVLED805 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series HVLED805
• Type AC DC Offline Switcher
• Packaging Tube
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Frequency -
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications -
• Supplier-Device-Package 16-SO
• Number-of-Outputs 1
• Current-Output-Channel -
• Internal-Switch-s Yes
• Topology Flyback
• Voltage-Supply-Max 23V
• Voltage-Supply-Min 11.5V
• Voltage-Output -
• Dimming PWM
• Pd-Power-Dissipation 0.9 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 25 C
• Operating-Frequency 166 kHz
