ISO7520CDW

ISO7520CDW Overview

Product belongs to the ISO7520C series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 547500 mg SMD/SMT Mounting-Style 16-SOIC (0.295", 7.50mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 105°C Number of channels: 2 Voltage Supply Range: 3.15 V ~ 3.45 V, 4.75 V ~ 5.25 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 4243Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 14ns, 14ns The minimum pulse width distortion is 3.7ns. Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 400 uA is 92 nA. Isolation voltage of 5 kVrms Maximum supply voltage of 5 V Minimum supply voltage is 3.3 V 9 ns is 23 microseconds. This product features 2 Channel Forward-Channels for simple connectivity. The product has 0 Channel for reverse communication.

ISO7520CDW Image

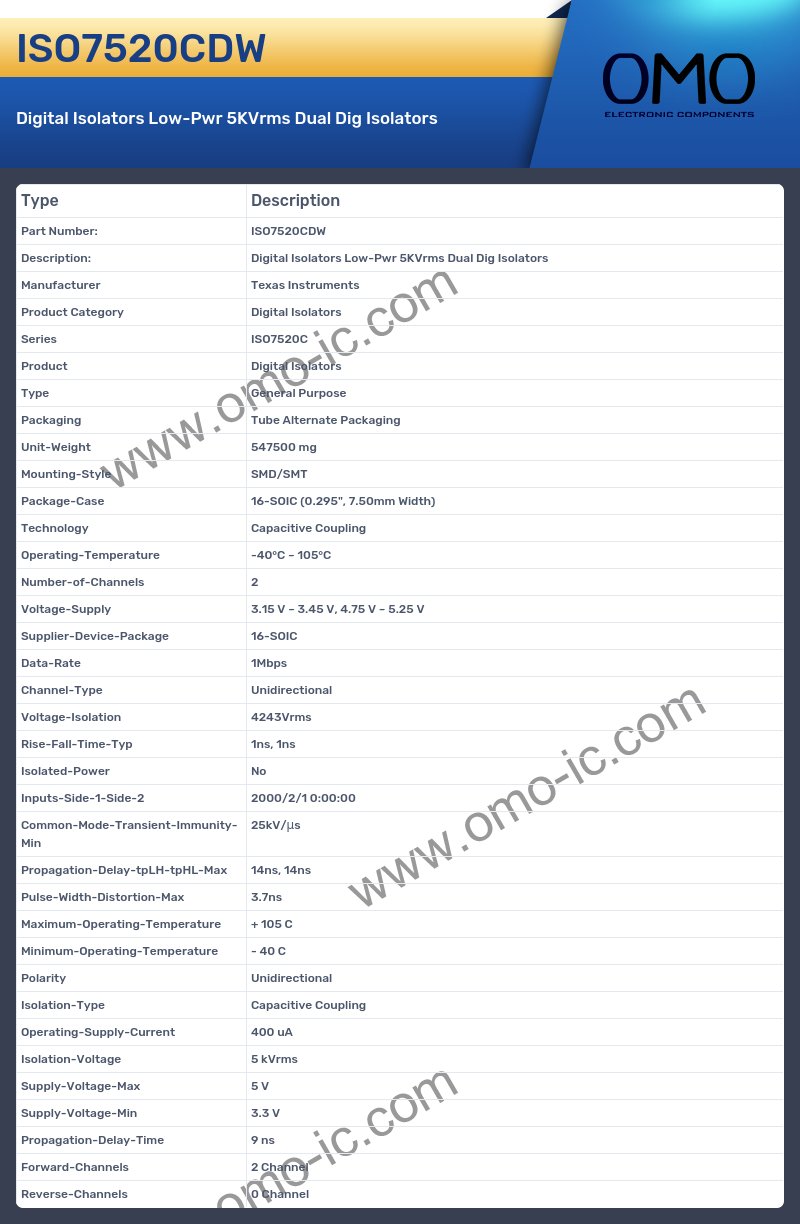

ISO7520CDW Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7520C
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 547500 mg
• Mounting-Style SMD/SMT
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 105°C
• Number-of-Channels 2
• Voltage-Supply 3.15 V ~ 3.45 V, 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 1Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 4243Vrms
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 14ns, 14ns
• Pulse-Width-Distortion-Max 3.7ns
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 400 uA
• Isolation-Voltage 5 kVrms
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 3.3 V
• Propagation-Delay-Time 9 ns
• Forward-Channels 2 Channel
• Reverse-Channels 0 Channel
