ISO8200BTR

ISO8200BTR Overview

Product belongs to the ISO8200B series. This product is categorized as Relay Drivers Type: Isolated Drivers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-36 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: - Interface: Parallel Supplier device package: PowerSO-36 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 8 Supply Voltage: - The High Side. The 120 mOhm. Voltage-Load range is 10.5 V ~ 36 V. Our product delivers a 700mA of 50mA for efficient power management. The Switch-Type is Relay, Solenoid Driver. Power-off control: Yes Output voltage: 1 V 9 mA is 92 nA. Output current: 700 mA This product has a 5 us of 16 ns. This product has a 5 us of 16 ns. Maximum supply voltage of 45 V Number-of-Drivers: 1 Driver Maximum off time: 22 us This product has a Maximum-Turn-Off-Delay-Time of 22 us. 17 us maximum turn-on delay time

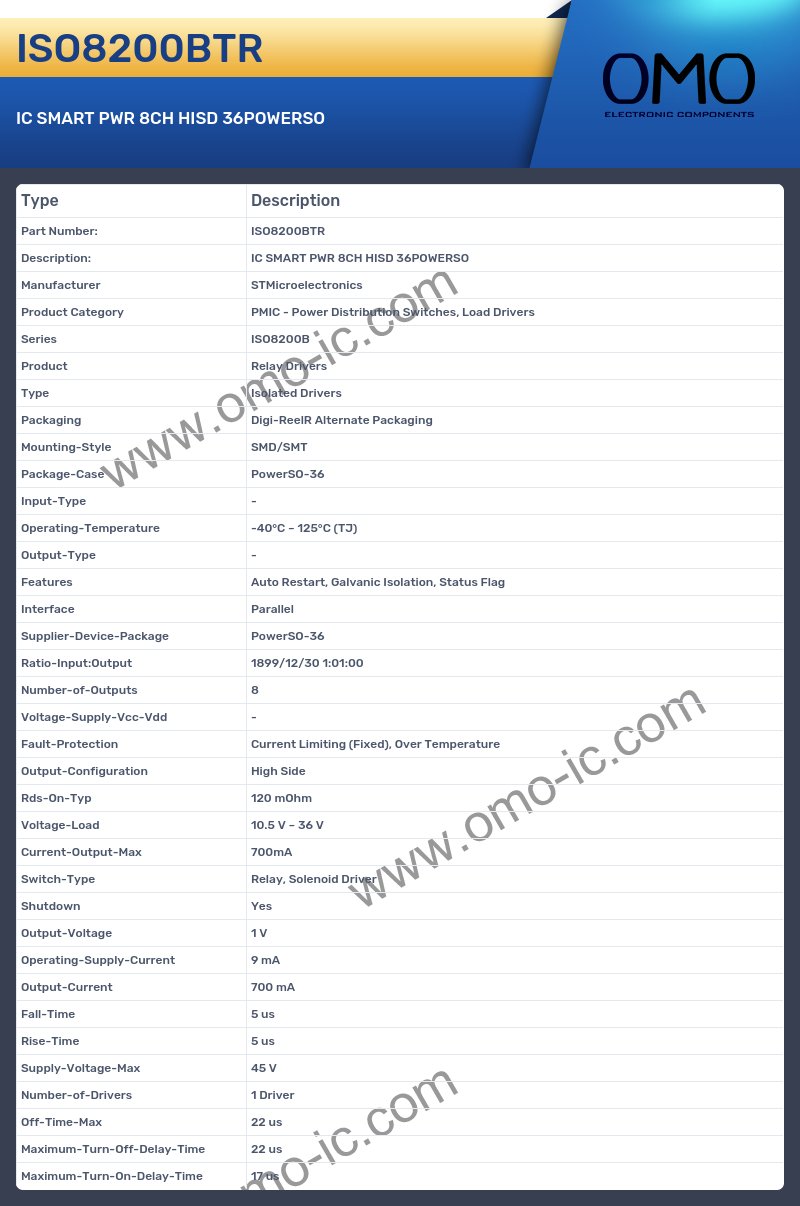

ISO8200BTR Image

ISO8200BTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series ISO8200B
• Product Relay Drivers
• Type Isolated Drivers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-36
• Input-Type -
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type -
• Features Auto Restart, Galvanic Isolation, Status Flag
• Interface Parallel
• Supplier-Device-Package PowerSO-36
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 8
• Voltage-Supply-Vcc-Vdd -
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 120 mOhm
• Voltage-Load 10.5 V ~ 36 V
• Current-Output-Max 700mA
• Switch-Type Relay, Solenoid Driver
• Shutdown Yes
• Output-Voltage 1 V
• Operating-Supply-Current 9 mA
• Output-Current 700 mA
• Fall-Time 5 us
• Rise-Time 5 us
• Supply-Voltage-Max 45 V
• Number-of-Drivers 1 Driver
• Off-Time-Max 22 us
• Maximum-Turn-Off-Delay-Time 22 us
• Maximum-Turn-On-Delay-Time 17 us
