L4972AD Overview

Product belongs to the L4972 series. Type: Step-Down Tube Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SO-20 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 20-SO Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 100kHz ~ 200kHz for optimal performance. The Positive. Minimum fixed output voltage is 5.1V . The value of No is included as a product attribute. The minimum input voltage is 15V. The 50V. Output voltage: 40 V Maximum Input Voltage: 55 V Output current: 2 A Switching frequency is 90 kHz to 110 kHz

L4972AD Image

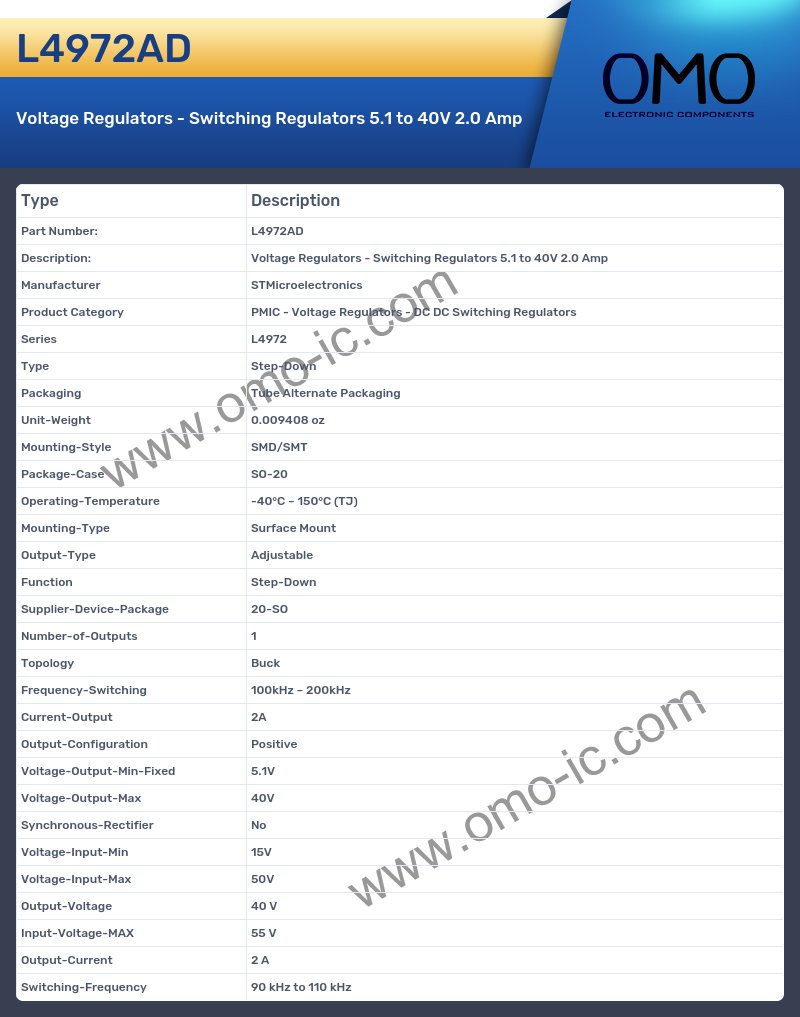

L4972AD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L4972
• Type Step-Down
• Packaging Tube Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SO-20
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 20-SO
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 100kHz ~ 200kHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 5.1V
• Voltage-Output-Max 40V
• Synchronous-Rectifier No
• Voltage-Input-Min 15V
• Voltage-Input-Max 50V
• Output-Voltage 40 V
• Input-Voltage-MAX 55 V
• Output-Current 2 A
• Switching-Frequency 90 kHz to 110 kHz
