| Mfr. #: | L5991D |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | Switching Controllers Prog Current Mode |
| ライフサイクル: | メーカー新製品 |
| データシート: | L5991D データシート |
Product belongs to the L5991 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -40°C ~ 150°C (TJ) * mounting type Supplier device package: 16-SO Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback feedback Supply Voltage: 10 V ~ 20 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start, Sync function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 12 V to 20 V supply voltage for reliable performance. Output voltage: 5.075 V Output current: 1500 mA Switching frequency is 1000 kHz This product has a 35 ns of 16 ns. This product has a 70 ns of 16 ns. Maximum duty cycle of 93 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

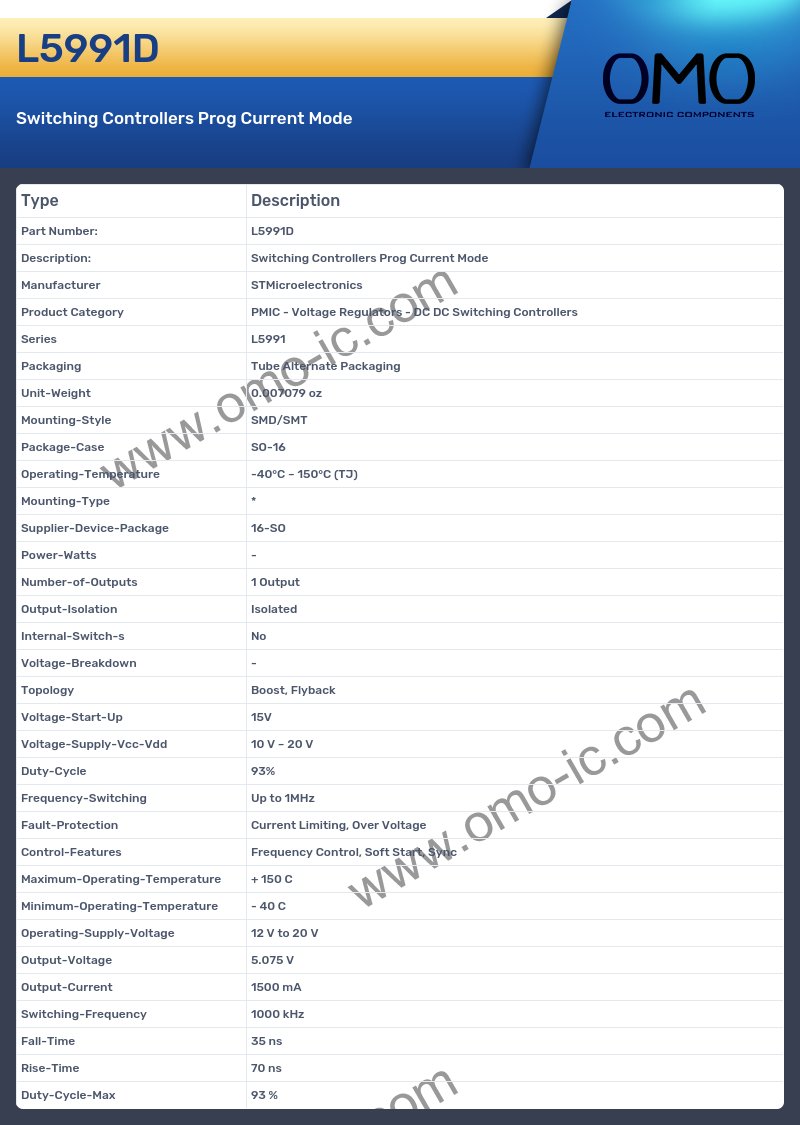

L5991D Specifications
A: At what frequency does the Series?
Q: The product Series is L5991.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.007079 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SO-16.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 150°C (TJ).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is *.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SO.
A: Is the cutoff frequency of the product Number-of-Outputs?
Q: Yes, the product's Number-of-Outputs is indeed 1 Output
A: What is the Output-Isolation of the product?
Q: The Output-Isolation of the product is Isolated.
A: At what frequency does the Internal-Switch-s?
Q: The product Internal-Switch-s is No.
A: At what frequency does the Topology?
Q: The product Topology is Boost, Flyback.
A: At what frequency does the Voltage-Supply-Vcc-Vdd?
Q: The product Voltage-Supply-Vcc-Vdd is 10 V ~ 20 V.
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is Up to 1MHz.
A: Is the cutoff frequency of the product Control-Features?
Q: Yes, the product's Control-Features is indeed Frequency Control, Soft Start, Sync
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 12 V to 20 V.
A: At what frequency does the Output-Voltage?
Q: The product Output-Voltage is 5.075 V.
A: At what frequency does the Output-Current?
Q: The product Output-Current is 1500 mA.
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 1000 kHz.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 35 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 70 ns.
A: What is the Duty-Cycle-Max of the product?
Q: The Duty-Cycle-Max of the product is 93 %.
