L6204D Overview

Product belongs to the - series. Tube is the packaging method for this product 28-SOIC (0.295", 7.50mm Width) BCDMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose applications for maximum usability Interface: Logic Voltage Supply Range: 2 V ~ 7 V Supplier device package: 28-SO Current-Output-Channel is 500mA The Half Bridge (4). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 1.2 Ohm. The product's 3A is 4A. Voltage-Load range is 12 V ~ 48 V.

L6204D Image

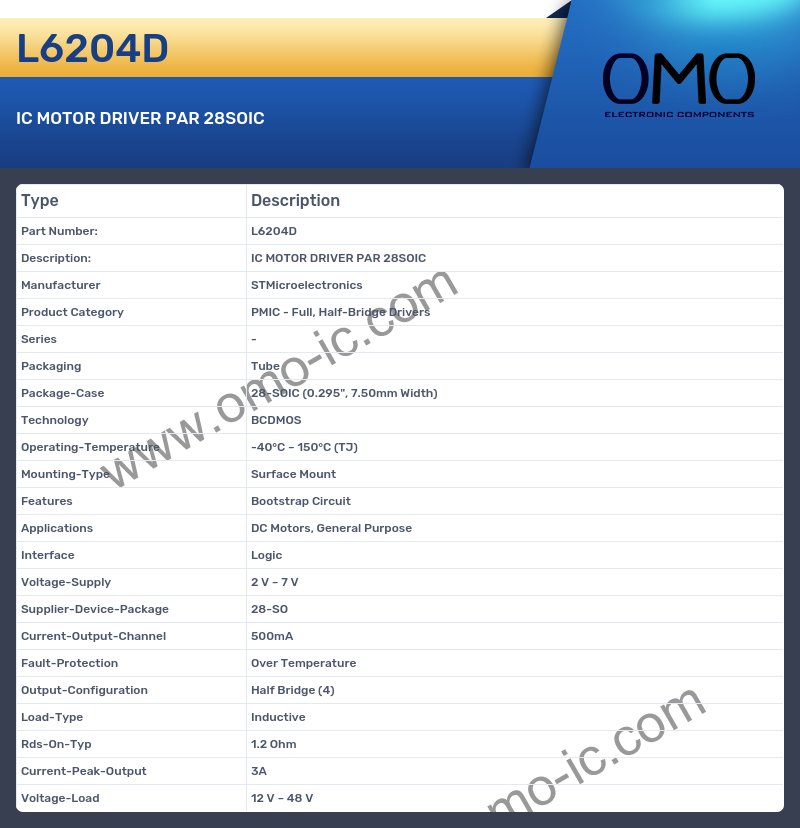

L6204D Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series -
• Packaging Tube
• Package-Case 28-SOIC (0.295", 7.50mm Width)
• Technology BCDMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit
• Applications DC Motors, General Purpose
• Interface Logic
• Voltage-Supply 2 V ~ 7 V
• Supplier-Device-Package 28-SO
• Current-Output-Channel 500mA
• Fault-Protection Over Temperature
• Output-Configuration Half Bridge (4)
• Load-Type Inductive
• Rds-On-Typ 1.2 Ohm
• Current-Peak-Output 3A
• Voltage-Load 12 V ~ 48 V
