| Mfr. #: | L6226QTR |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IC MTR DRVR BIPLR 8-52V 32VFQFPN |
| ライフサイクル: | メーカー新製品 |
| データシート: | L6226QTR データシート |
Product belongs to the L6226Q series. This product is categorized as Half-Bridge Drivers Type: High Side/Low Side Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 32-VFQFN Exposed Pad DMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 8 V ~ 52 V Supplier device package: 32-VFQFPN (5x5) Number-of-Outputs: 4 The Half Bridge (4). Voltage-Load range is 8 V ~ 52 V. Brushed DC motor type is used for high-performance and efficient operation. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product has a 250 ns of 16 ns. This product has a 250 ns of 16 ns. Minimum supply voltage is 8 V Number-of-Drivers: 2 Driver 1900 ns maximum turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

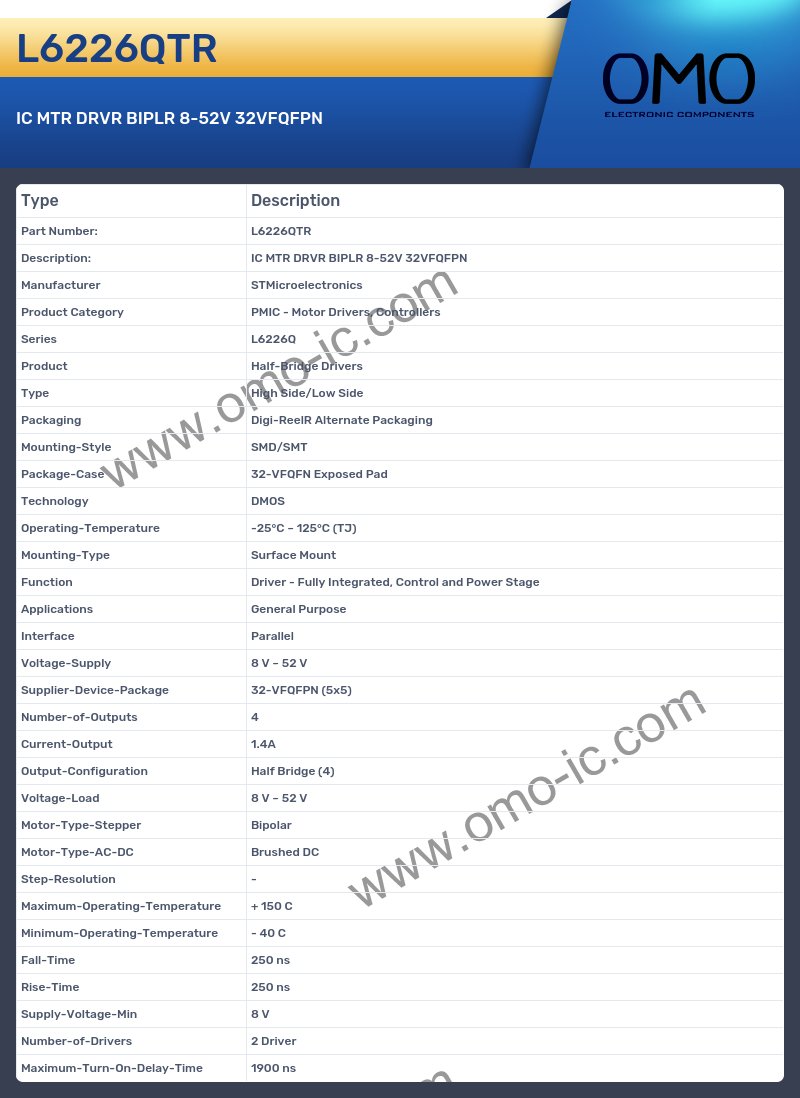

L6226QTR Specifications
