L6569D

L6569D Overview

Product belongs to the L6569 series. Type: Half-Bridge Tube Alternate Packaging is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: - -40°C ~ 150°C (TJ) mounting type Supplier device package: 8-SOIC (0.154", 3.90mm Width) Resolution-Bits: 2 Data-Interface: Synchronous The Voltage-Supply-Analog is RC Input Circuit. The Voltage Supply Digital for this product is 600V. Configuration Self-Oscillating 10 V ~ 16.6 V is supported. Number-of-Outputs: 2 Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 25 mA is 92 nA. Minimum supply voltage is 10 V Number-of-Drivers: 2 Driver

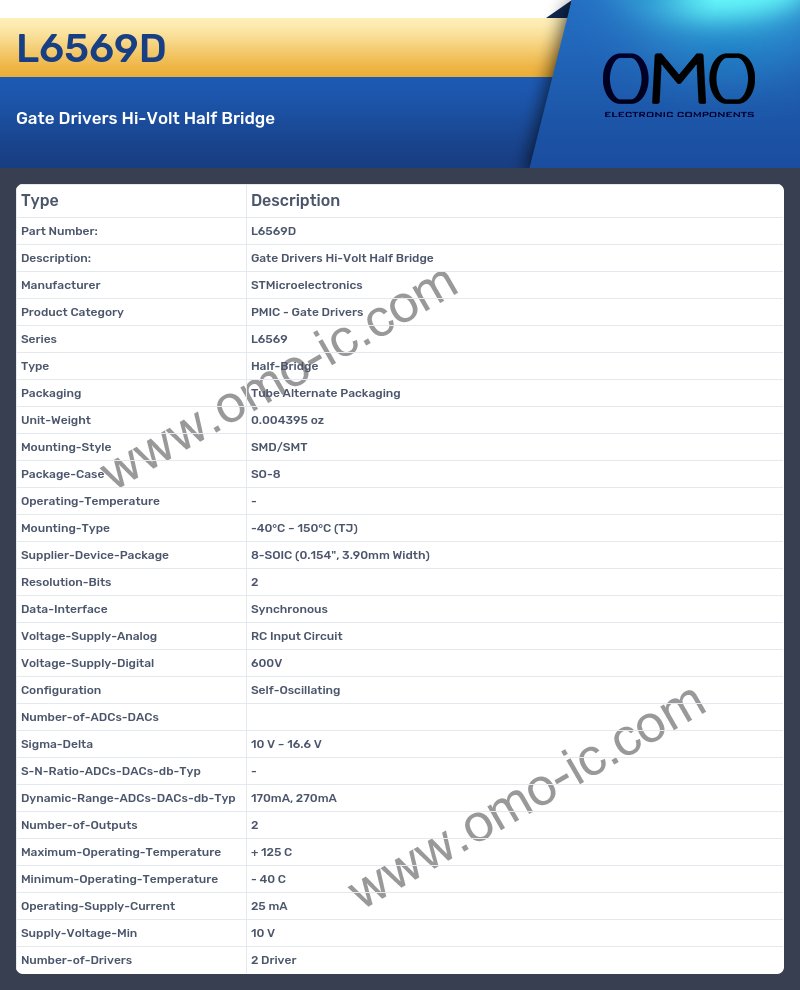

L6569D Image

L6569D Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Gate Drivers
• Series L6569
• Type Half-Bridge
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -
• Mounting-Type -40°C ~ 150°C (TJ)
• Supplier-Device-Package 8-SOIC (0.154", 3.90mm Width)
• Resolution-Bits 2
• Data-Interface Synchronous
• Voltage-Supply-Analog RC Input Circuit
• Voltage-Supply-Digital 600V
• Configuration Self-Oscillating
• Number-of-ADCs-DACs
• Sigma-Delta 10 V ~ 16.6 V
• S-N-Ratio-ADCs-DACs-db-Typ -
• Dynamic-Range-ADCs-DACs-db-Typ 170mA, 270mA
• Number-of-Outputs 2
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 25 mA
• Supply-Voltage-Min 10 V
• Number-of-Drivers 2 Driver
