L7815CD2T-TR

L7815CD2T-TR Overview

Product belongs to the L7815 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000071 oz SMD/SMT Mounting-Style D2PAK Operational temperature range: 0°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: D2PAK Up to 35V voltage input Number-of-Outputs: 1 Output voltage: 15V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Polarity: Positive Output voltage: 15 V Maximum Input Voltage: 35 V Output current: 1.5 A The product's 17 V is 5.1 V. Load regulation is 300 mV. This product's 300 mV is 0.01 %/V. The product's 54 dB is -20 dB.

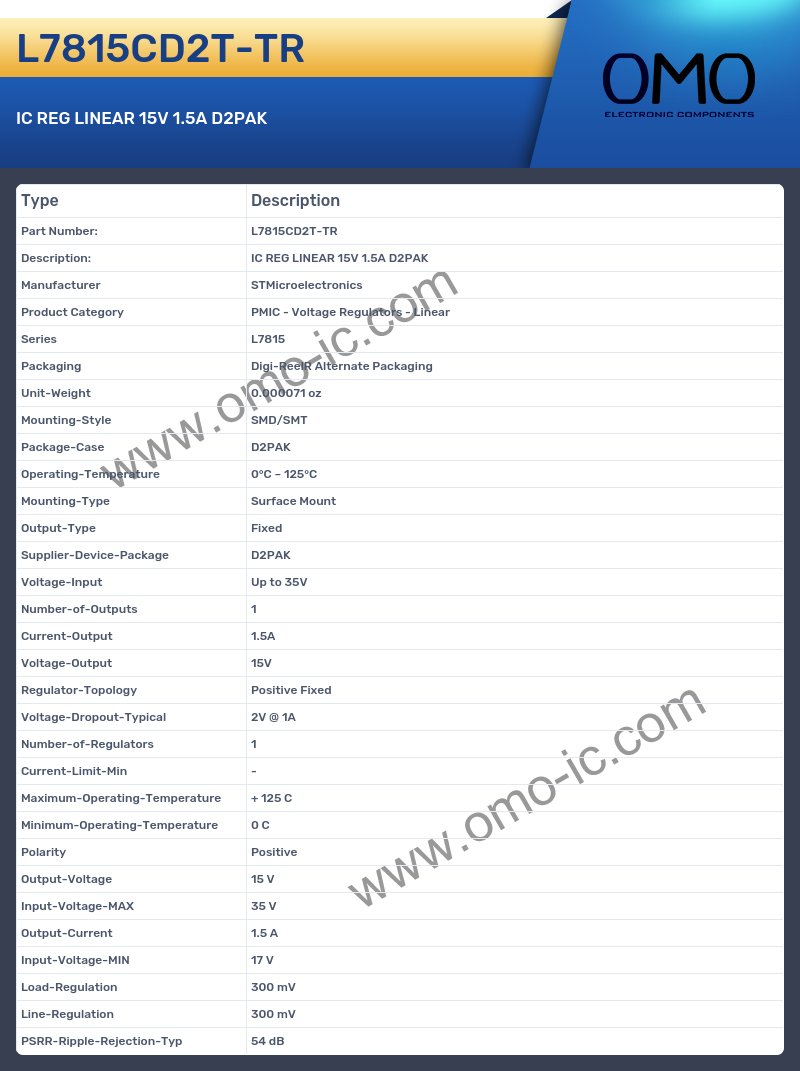

L7815CD2T-TR Image

L7815CD2T-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L7815
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000071 oz
• Mounting-Style SMD/SMT
• Package-Case D2PAK
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package D2PAK
• Voltage-Input Up to 35V
• Number-of-Outputs 1
• Current-Output 1.5A
• Voltage-Output 15V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Polarity Positive
• Output-Voltage 15 V
• Input-Voltage-MAX 35 V
• Output-Current 1.5 A
• Input-Voltage-MIN 17 V
• Load-Regulation 300 mV
• Line-Regulation 300 mV
• PSRR-Ripple-Rejection-Typ 54 dB
