L7824CV-DG

L7824CV-DG Overview

Product belongs to the L7824 series. This product is categorized as Voltage Regulators Type: Positive Voltage Regulator Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220 Up to 40V voltage input Number-of-Outputs: 1 Output voltage: 24V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Polarity: Positive Output voltage: 24 V Maximum Input Voltage: 40 V Output current: 1 A Load regulation is 25 mV. This product's 31 mV is 0.01 %/V. The product's 54 dB is -20 dB.

L7824CV-DG Image

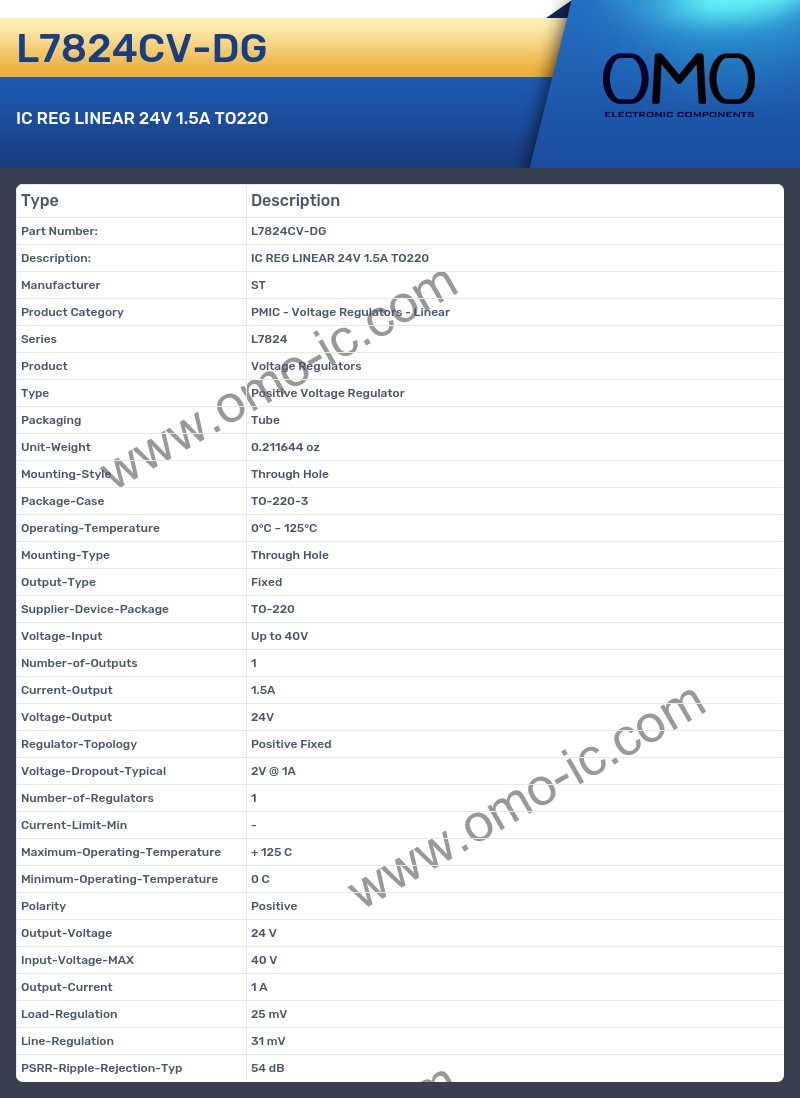

L7824CV-DG Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series L7824
• Product Voltage Regulators
• Type Positive Voltage Regulator
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220
• Voltage-Input Up to 40V
• Number-of-Outputs 1
• Current-Output 1.5A
• Voltage-Output 24V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Polarity Positive
• Output-Voltage 24 V
• Input-Voltage-MAX 40 V
• Output-Current 1 A
• Load-Regulation 25 mV
• Line-Regulation 31 mV
• PSRR-Ripple-Rejection-Typ 54 dB
