L7985TR

L7985TR Overview

Product belongs to the L7985 series. Type: Step Down Switching Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications 10-VFDFN Exposed Pad Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: * Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 250kHz ~ 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 38V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 0.6 V to 38 V 2.4 mA is 92 nA. Maximum Input Voltage: 38 V Output current: 2 A Switching frequency is 250 kHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

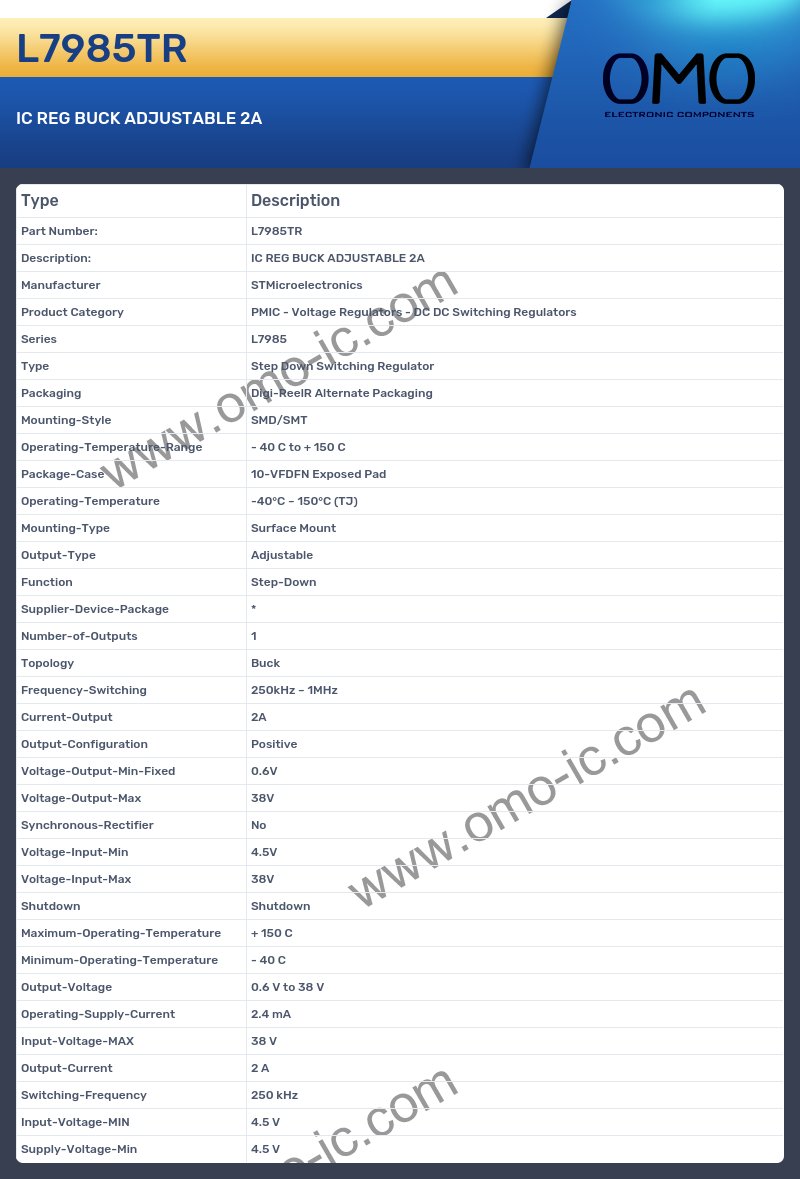

L7985TR Image

L7985TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L7985
• Type Step Down Switching Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case 10-VFDFN Exposed Pad
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package *
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 250kHz ~ 1MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 38V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 38V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.6 V to 38 V
• Operating-Supply-Current 2.4 mA
• Input-Voltage-MAX 38 V
• Output-Current 2 A
• Switching-Frequency 250 kHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
