LD1117DT12CTR

LD1117DT12CTR Overview

Product belongs to the LD1117DT1 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: D-Pak Tolerance of 1 % Up to 15V voltage input Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 12 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V Maximum Input Voltage: 15 V Output current: 800 mA Load regulation is 0.1 %. Reference voltage is 1.2 V . The maximum 1 V is 360 mV. This product's 0.035 % is 0.01 %/V.

LD1117DT12CTR Image

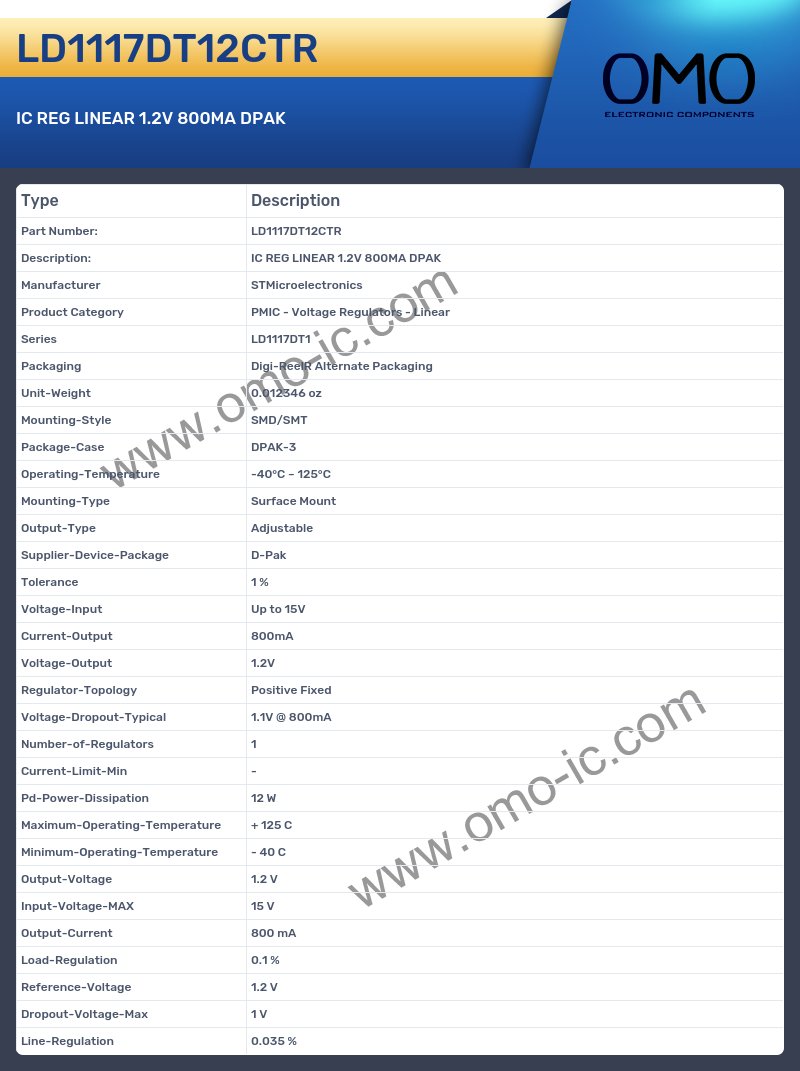

LD1117DT12CTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD1117DT1
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package D-Pak
• Tolerance 1 %
• Voltage-Input Up to 15V
• Current-Output 800mA
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.1V @ 800mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 12 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Input-Voltage-MAX 15 V
• Output-Current 800 mA
• Load-Regulation 0.1 %
• Reference-Voltage 1.2 V
• Dropout-Voltage-Max 1 V
• Line-Regulation 0.035 %
