LD1580P2T-R

LD1580P2T-R Overview

Product belongs to the LD1580P series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style P2PAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: P2PAK Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: Adjustable Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.237 V to 1.263 V Maximum Input Voltage: 6 V Output current: 7 A The product's - 0.3 V is 5.1 V. Load regulation is 0.4 %. The voltage regulation accuracy of this product is 2 %. Input bias current of 5 mA The 0.4 V at 7 A. The maximum 400 mV is 360 mV. This product's 0.24 % is 0.01 %/V.

LD1580P2T-R Image

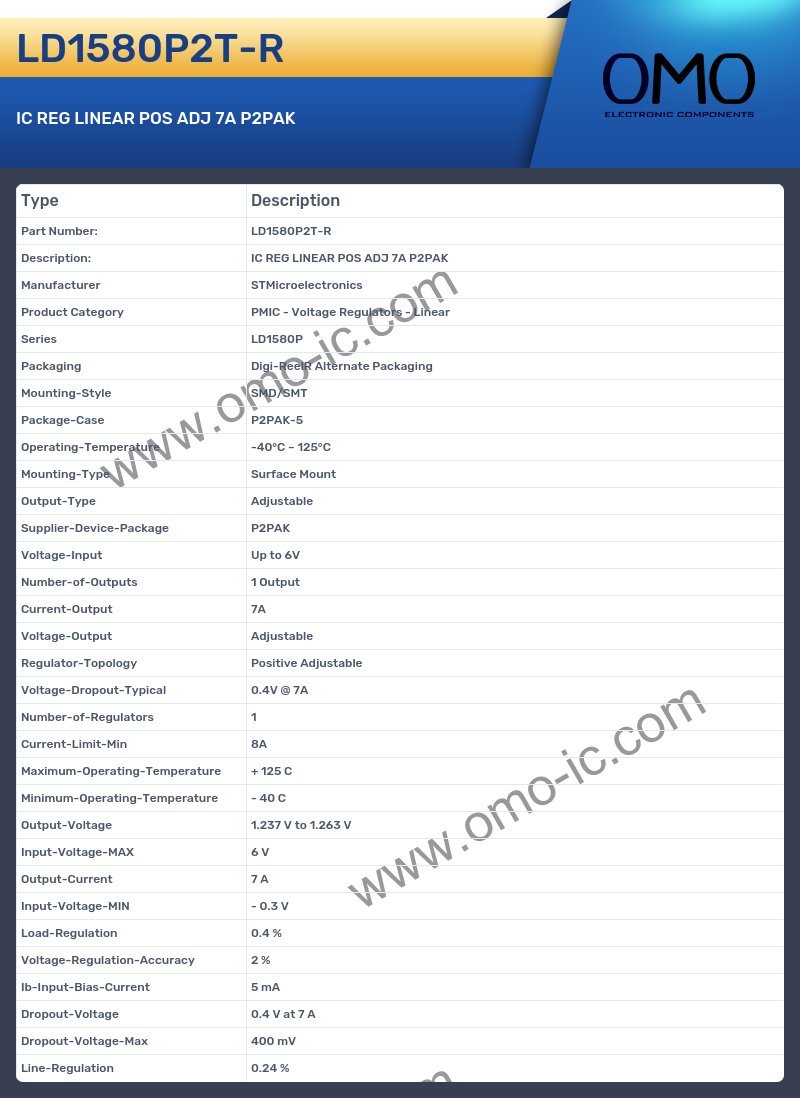

LD1580P2T-R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD1580P
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case P2PAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package P2PAK
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 7A
• Voltage-Output Adjustable
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.4V @ 7A
• Number-of-Regulators 1
• Current-Limit-Min 8A
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.237 V to 1.263 V
• Input-Voltage-MAX 6 V
• Output-Current 7 A
• Input-Voltage-MIN - 0.3 V
• Load-Regulation 0.4 %
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 5 mA
• Dropout-Voltage 0.4 V at 7 A
• Dropout-Voltage-Max 400 mV
• Line-Regulation 0.24 %
