LD29080PT18R

LD29080PT18R Overview

Product belongs to the LD29080 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PPAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: PPAK 2.5 V ~ 13 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V Maximum Input Voltage: 13 V Output current: 800 mA The product's + 2.5 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 1 %. Input bias current of 2 mA This product has a 5 mA of 7 mA, making it ideal for low-power applications. The 0.1 V at 150 mA. The maximum 700 mV at 800 mA is 360 mV. This product's 0.5 % is 0.01 %/V.

LD29080PT18R Image

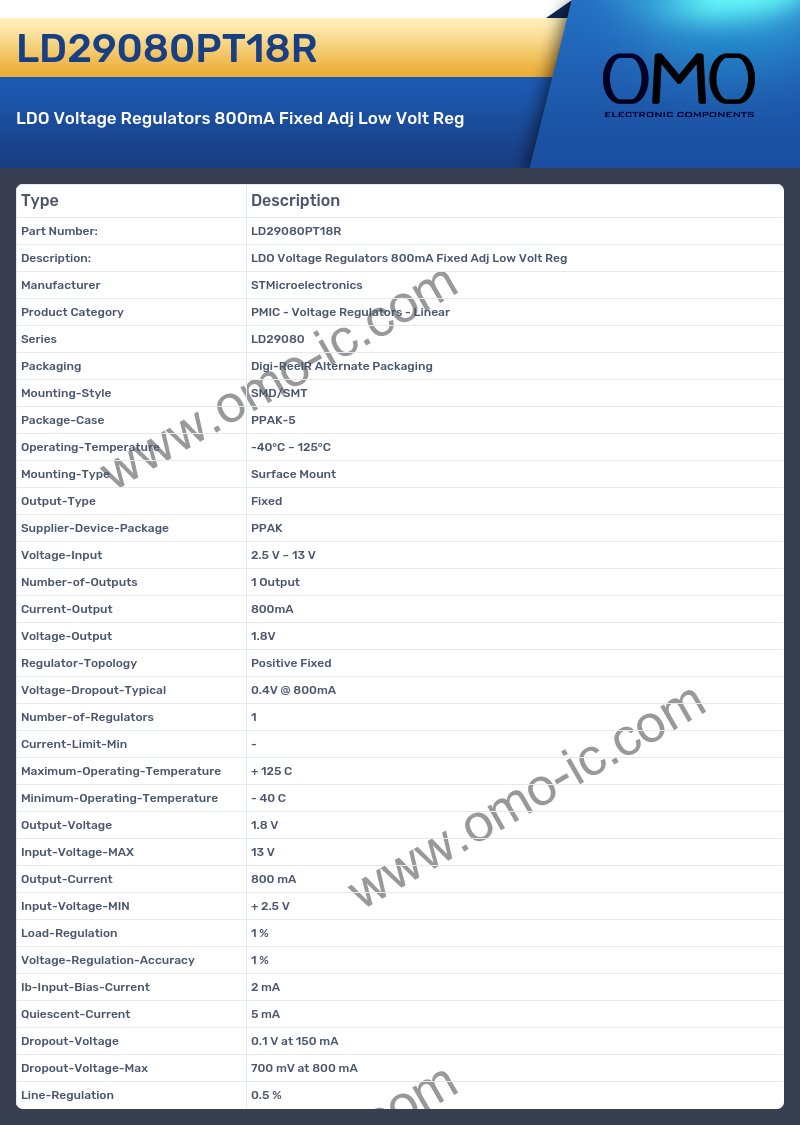

LD29080PT18R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD29080
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PPAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package PPAK
• Voltage-Input 2.5 V ~ 13 V
• Number-of-Outputs 1 Output
• Current-Output 800mA
• Voltage-Output 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.4V @ 800mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V
• Input-Voltage-MAX 13 V
• Output-Current 800 mA
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 2 mA
• Quiescent-Current 5 mA
• Dropout-Voltage 0.1 V at 150 mA
• Dropout-Voltage-Max 700 mV at 800 mA
• Line-Regulation 0.5 %
