LDP01-39AY

LDP01-39AY Overview

Product belongs to the Automotive, AEC-Q101, LDP01Y, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 4.6 mm. 10.4 mm length of the product The 9.35 mm is at most 7.6 mm. TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: D2PAK Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 33V. The Voltage-Breakdown-Min is 36.7V. No Power-Line-Protection - Capacitance-Frequency Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Breakdown-Voltage: 39 V Clamping-Voltage: 66 V 1.05 kA Peak Surge Current 33 V working voltage Polarity: Unidirectional

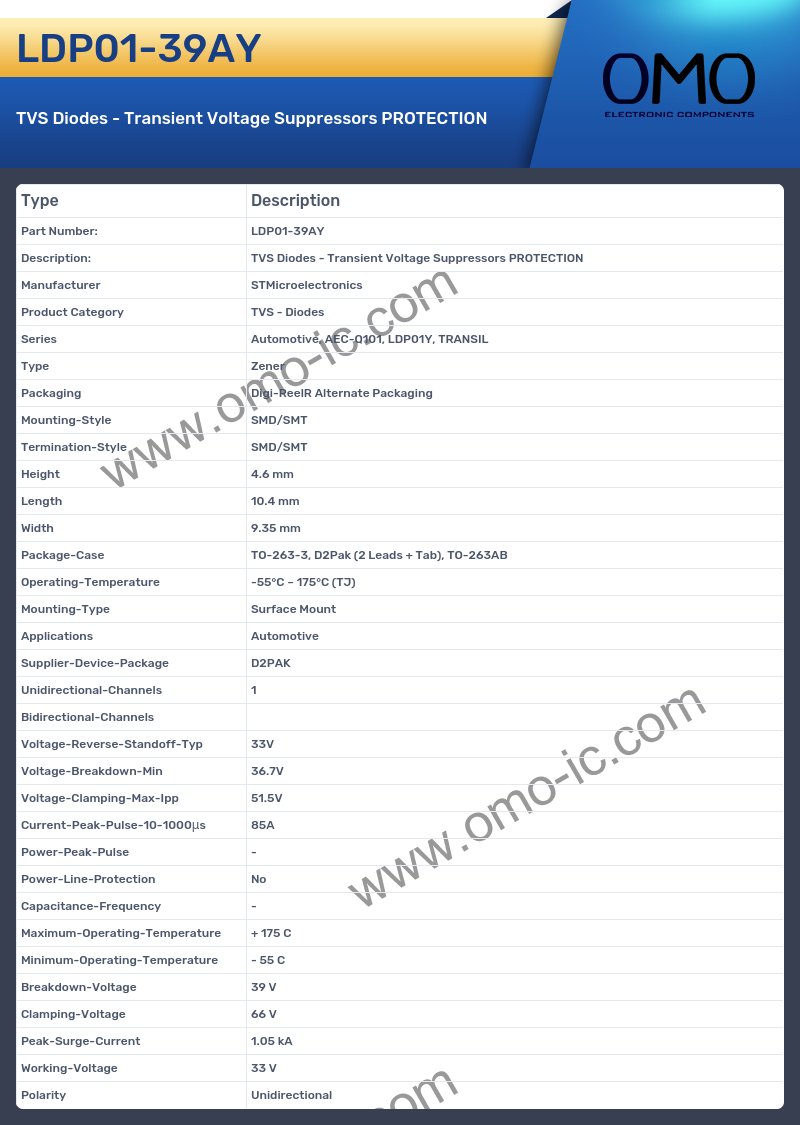

LDP01-39AY Image

LDP01-39AY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, LDP01Y, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Height 4.6 mm
• Length 10.4 mm
• Width 9.35 mm
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package D2PAK
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 33V
• Voltage-Breakdown-Min 36.7V
• Voltage-Clamping-Max-Ipp 51.5V
• Current-Peak-Pulse-10-1000μs 85A
• Power-Peak-Pulse -
• Power-Line-Protection No
• Capacitance-Frequency -
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 39 V
• Clamping-Voltage 66 V
• Peak-Surge-Current 1.05 kA
• Working-Voltage 33 V
• Polarity Unidirectional
