LDS3985M25R

LDS3985M25R Overview

Product belongs to the LDS3985 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000222 oz SMD/SMT Mounting-Style TSOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.5 V Maximum Input Voltage: 6 V Output current: 550 mA The product's + 2.5 V is 5.1 V. Load regulation is 0.004 % / mA. The voltage regulation accuracy of this product is 2 %. Input bias current of 85 uA This product has a 150 uA of 7 mA, making it ideal for low-power applications. The 0.0004 V at 1 mA. The maximum 2 mV at 1 mA is 360 mV.

LDS3985M25R Image

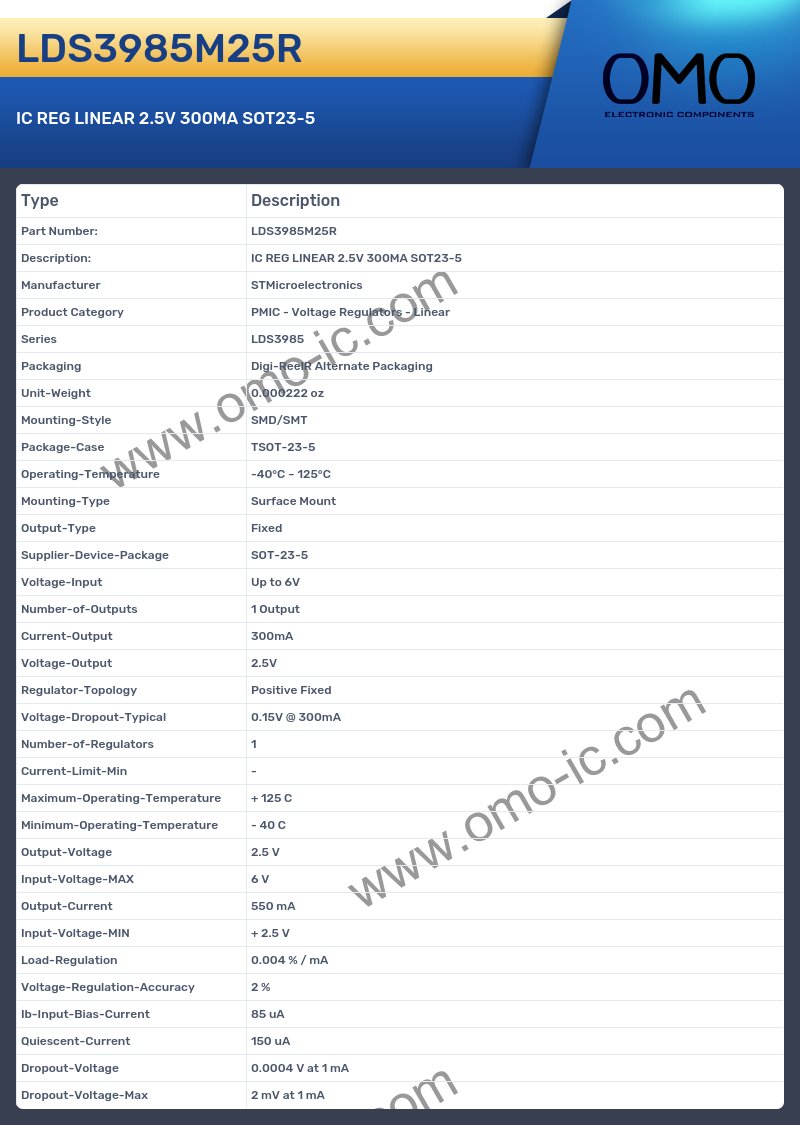

LDS3985M25R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDS3985
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000222 oz
• Mounting-Style SMD/SMT
• Package-Case TSOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.15V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 6 V
• Output-Current 550 mA
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 0.004 % / mA
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 85 uA
• Quiescent-Current 150 uA
• Dropout-Voltage 0.0004 V at 1 mA
• Dropout-Voltage-Max 2 mV at 1 mA
