LED7707

LED7707 Overview

Product belongs to the - series. Type: DC DC Regulator Tube is the packaging method for this product 24-VFQFN Exposed Pad This product's 250kHz ~ 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 24-VFQFPN (4x4) Number-of-Outputs: 6 Current-Output-Channel is 85mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 36V. The minimum 4.5V required for voltage supply. Output voltage: 36V Dimming control is done through PWM communication.

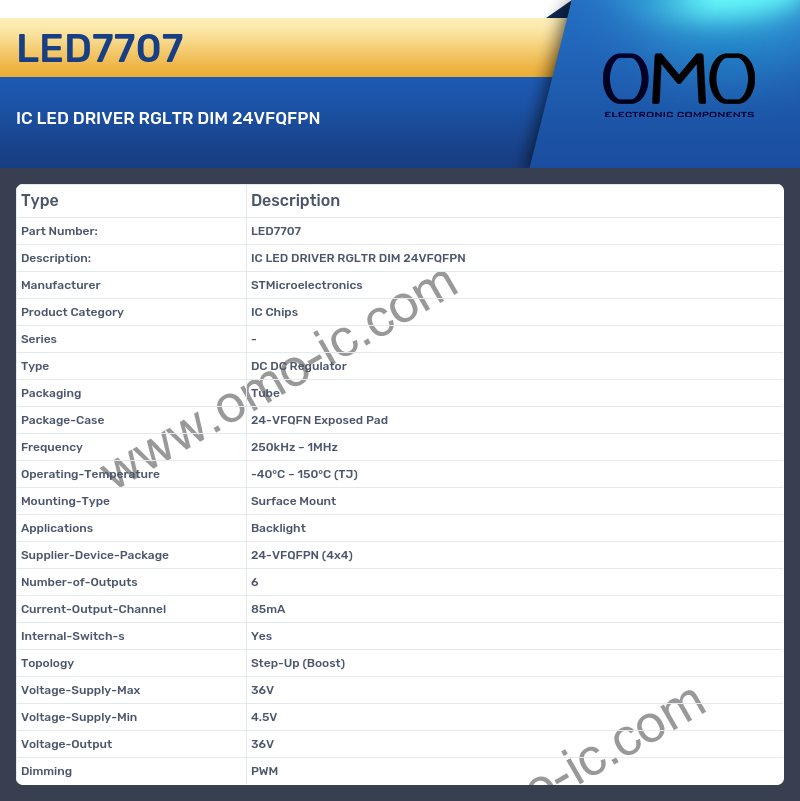

LED7707 Image

LED7707 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series -
• Type DC DC Regulator
• Packaging Tube
• Package-Case 24-VFQFN Exposed Pad
• Frequency 250kHz ~ 1MHz
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 24-VFQFPN (4x4)
• Number-of-Outputs 6
• Current-Output-Channel 85mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 36V
• Voltage-Supply-Min 4.5V
• Voltage-Output 36V
• Dimming PWM
