LF80CDT-TR Overview

Product belongs to the LF80 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: D-Pak Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 8 V Maximum Input Voltage: 16 V Output current: 1 A Load regulation is 40 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 700 uA This product has a 1.5 mA of 7 mA, making it ideal for low-power applications. The 0.2 V at 200 mA. The maximum 1 V is 360 mV. This product's 40 mV is 0.01 %/V.

LF80CDT-TR Image

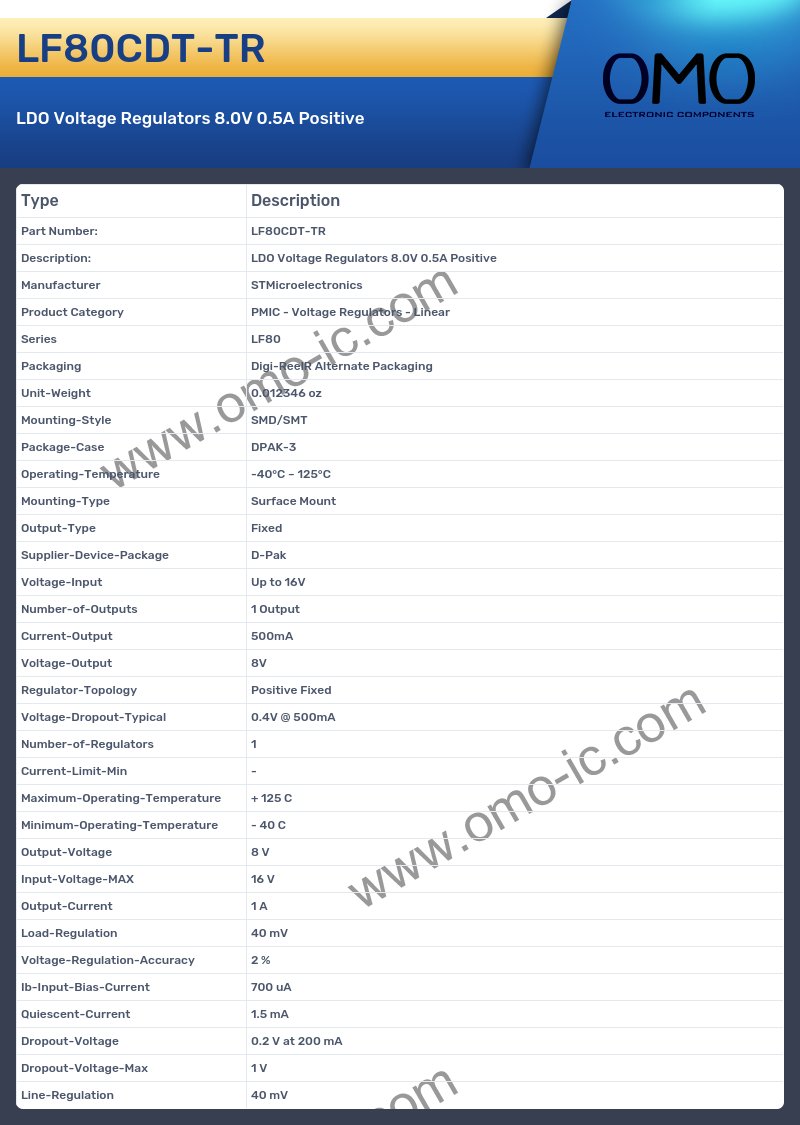

LF80CDT-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LF80
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package D-Pak
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.4V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 8 V
• Input-Voltage-MAX 16 V
• Output-Current 1 A
• Load-Regulation 40 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 700 uA
• Quiescent-Current 1.5 mA
• Dropout-Voltage 0.2 V at 200 mA
• Dropout-Voltage-Max 1 V
• Line-Regulation 40 mV
